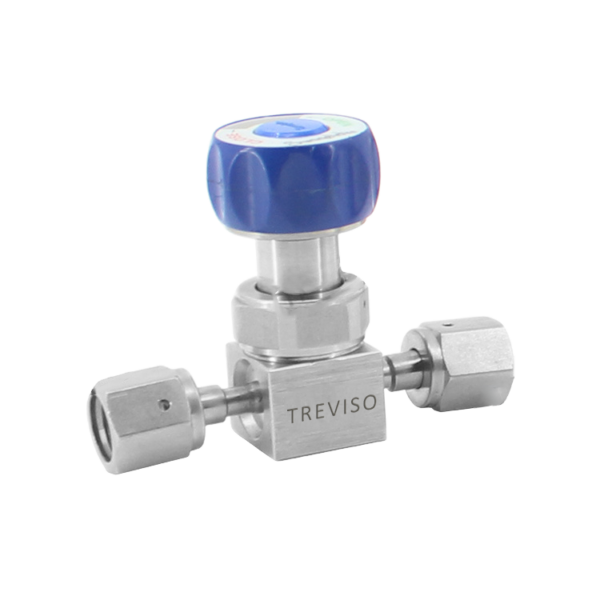

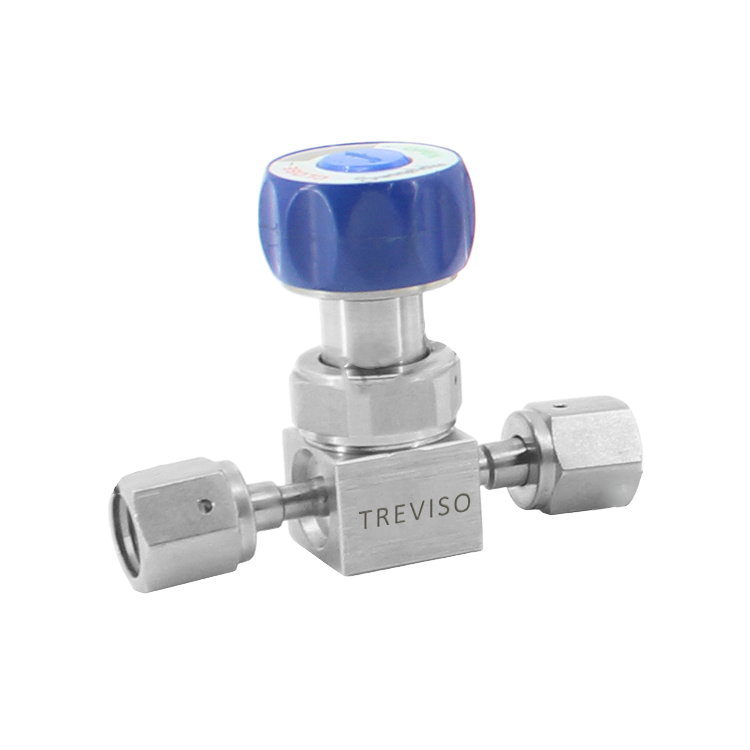

The diaphragm valve is a high-performance flow control device that uses a flexible diaphragm to regulate, isolate, and seal off pipelines. Manufactured with high-quality materials such as carbon steel, stainless steel, copper, and alloy steel, our diaphragm valves are available in sizes ranging from 1/4″ to 1″.
With a pressure rating up to 4500 psig (310 bar) and operational temperatures reaching 320°F (160°C), this valve ensures reliable performance even under extreme conditions. Featuring VCR end connections, it guarantees the purity and safety of ultra-clean gas systems, making it ideal for industries like semiconductors, microelectronics, and precision manufacturing.
Technical Specifications
-
Body Material: Carbon steel, stainless steel, copper, alloy steel
-
Size Range: 1/4″ to 1″
-
Pressure Rating: 4500 psig (310 bar)
-
Operating Temperature: Up to 320°F (160°C)
-
End Connection: VCR fittings
-
Applicable Medium: Ultra-pure gases
-
Operation Method: Manual operation, pneumatic operation
-
Industry Standards: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
