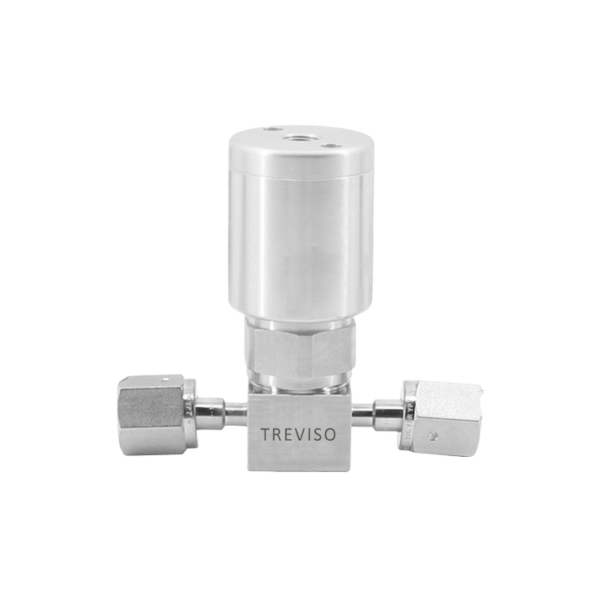

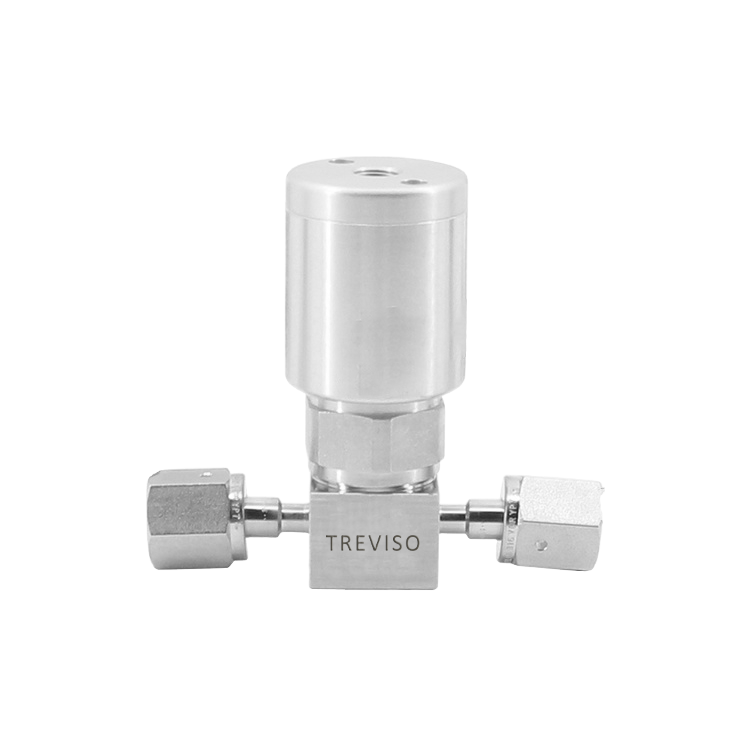

Diaphragm Valve 2 is specifically engineered for high-purity gas applications where precise flow control and superior sealing are critical. Utilizing a flexible diaphragm, it effectively starts, stops, and isolates fluid flow within pipelines. Constructed with robust materials like carbon steel, stainless steel, copper, and alloy steel, this diaphragm valve is designed to operate across a wide range of demanding environments.
Offering a size range of 1/4″ to 1″, the valve supports pressures up to 4500 psig (310 bar) and can withstand working temperatures up to 320°F (160°C). Its VCR end connections ensure leak-free performance, ideal for industries requiring ultra-clean gas systems, including semiconductors and microelectronics manufacturing.
Technical Specifications
-
Body Material: Carbon steel, stainless steel, copper, alloy steel
-
Size Range: 1/4″ to 1″
-
Pressure Rating: 4500 psig (310 bar)
-
Operating Temperature: Up to 320°F (160°C)
-
End Connection: VCR fittings
-
Applicable Medium: Ultra-pure gases
-
Operation Methods: Manual operation, pneumatic operation
-
Applicable Industries: Ultra-clean systems, microelectronics sector
-
Design and Manufacturing Standards: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
