High-Pressure Performance | Durable Forged Body | Precision Flow Control

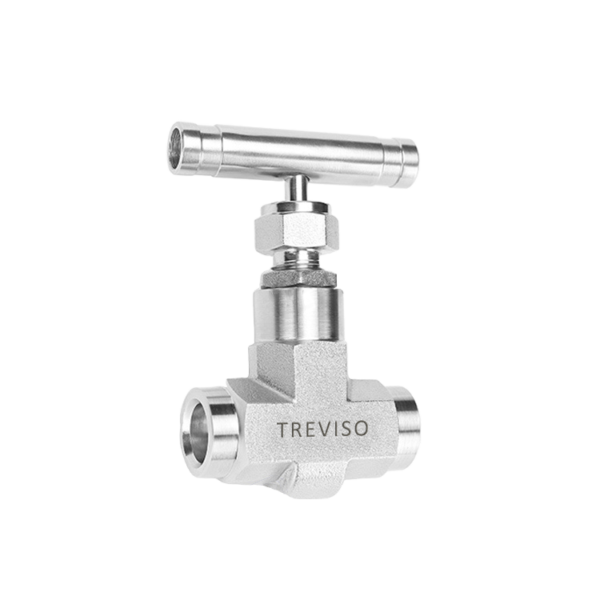

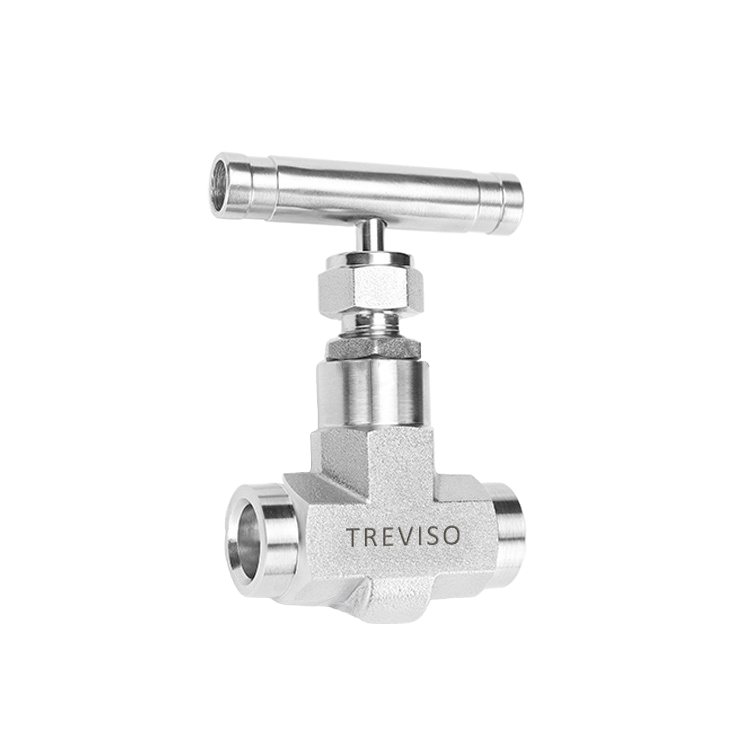

The Forged Needle Valve is engineered for high-performance flow regulation in demanding industrial environments. Featuring a one-piece forged valve body, it provides superior strength, pressure resistance, and long service life. Its innovative two-section stem design includes a hardened upper stem thread and roll-hardened lower stem surface, delivering reduced wear, smooth operation, and excellent sealing reliability.
Designed for non-rotating stem motion, the valve minimizes friction during each stroke by using vertical movement instead of rotation—enhancing packing life and reducing wear between the valve seat and valve head. The screw-locked handle ensures stable, secure operation even under extreme conditions.
Technical Specifications:
- Body Material: Carbon Steel, Stainless Steel, Copper, Alloy 400 (Monel)
- Size Range: DN5 – DN25
- Pressure Rating: ≤10,000 psig (689 bar)
- Working Temperature: -54°C to 649°C (-65°F to 1200°F)
- End Connections: Threaded, Welded, Ferrule
- Operation Type: Manual
- Standards & Certifications: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
Applications:
Ideal for use in high-precision, high-pressure systems such as:
- Petroleum and Oil & Gas Industries
- Chemical and Pharmaceutical Processing
- Testing and Instrumentation Equipment
