High-Pressure High-Temperature Needle Valve

High-Pressure High-Temperature Needle Valve

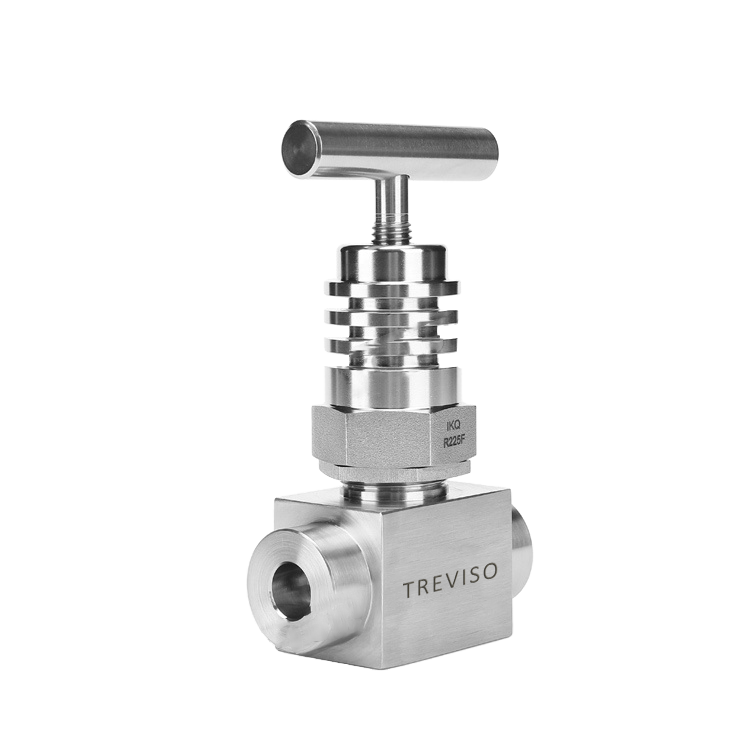

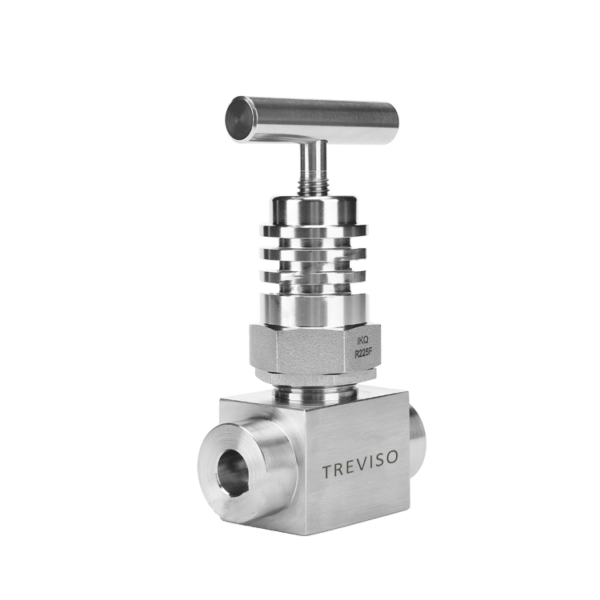

The High-Pressure High-Temperature Needle Valve  is designed for precision flow control in high-pressure and high-temperature environments. Built from durable materials such as carbon steel, stainless steel, brass, and Monel 400, this needle valve is engineered to handle pressures up to 6000 PSI and temperatures ranging from -29°C to 425°C, ensuring reliable performance across a wide range of industries.

This valve provides excellent flow regulation and tight sealing, even under extreme conditions, making it ideal for applications in oil and gas, chemical processing, medical equipment, and power generation systems.

Categoria:

The High-Pressure High-Temperature Needle Valve  is designed for precision flow control in high-pressure and high-temperature environments. Built from durable materials such as carbon steel, stainless steel, brass, and Monel 400, this needle valve is engineered to handle pressures up to 6000 PSI and temperatures ranging from -29°C to 425°C, ensuring reliable performance across a wide range of industries.

This valve provides excellent flow regulation and tight sealing, even under extreme conditions, making it ideal for applications in oil and gas, chemical processing, medical equipment, and power generation systems.

🔧 Technical Specifications

  • Materials: Carbon steel, stainless steel, brass, Monel 400, 2205 duplex steel

  • Size Range: DN3-DN50

  • Pressure Rating: 6000 PSI

  • Temperature Range: -29°C to 425°C

  • End Connections: Screwed, welded, flanged

  • Operation: Manual operation

  • Suitable Fluids: Water, steam, oil, weak acid solutions

  • Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
