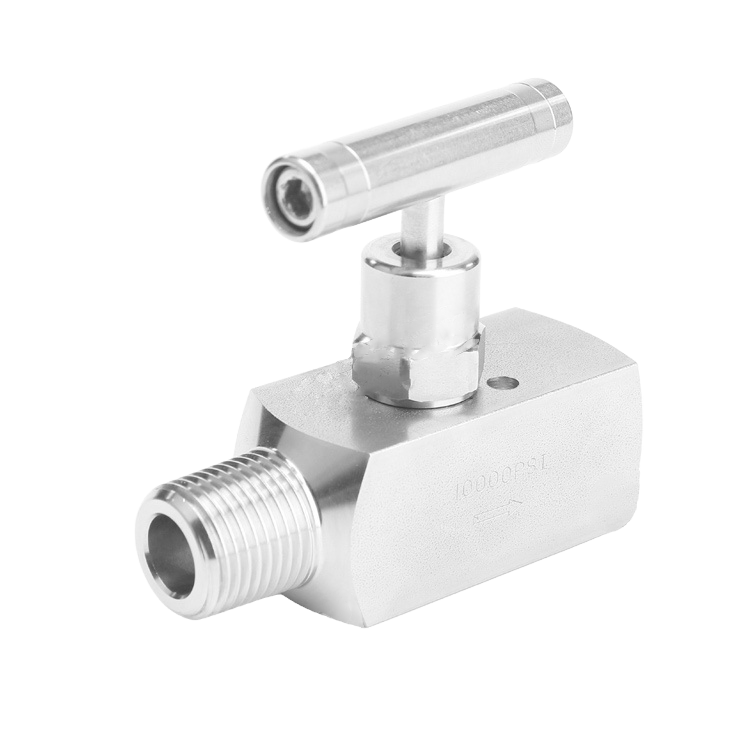

The High-Pressure Needle Valve is designed for precise flow regulation and shut-off in high-pressure systems. Made from high-quality materials like carbon steel, stainless steel, and alloy steel, this valve is engineered to withstand pressures up to 6000 PSI and temperatures ranging from -29°C to 425°C, ensuring reliable operation in demanding environments. It is ideal for use in industries such as oil and gas, chemical processing, and medical applications.
This valve provides secure, leak-proof performance with its robust design and tight sealing mechanisms. It is perfect for controlling fluids like water, steam, oil, and weak acid solutions, making it versatile for various industrial applications.
🔧 Technical Specifications
-
Materials: Carbon steel, stainless steel, brass, Monel 400, 2205 duplex steel
-
Size Range: DN15-DN50
-
Pressure Rating: 6000 PSI
-
Temperature Range: -29°C to 425°C
-
End Connections: Screwed, welded, and flanged
-
Operation: Manual operation
-
Suitable Fluids: Water, steam, oil, weak acid solutions
-
Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
