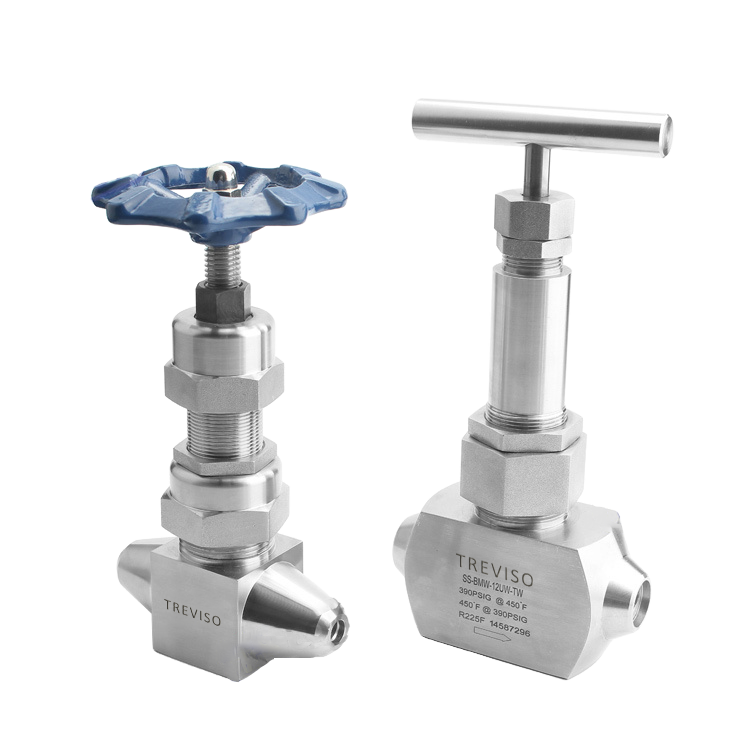

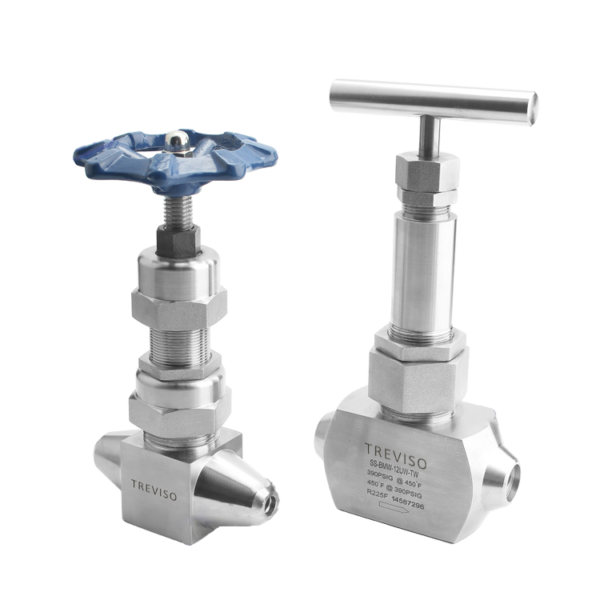

The High-Pressure Needle Valve 2 is designed for controlling and regulating flow in high-pressure systems. It is ideal for use in industries such as oil and gas, chemical processing, and water treatment, where precise flow control is critical. Made from high-quality materials such as carbon steel, stainless steel, and alloy steel, this valve is engineered to withstand pressures up to 6000 PSI and temperatures ranging from -29°C to 425°C, ensuring reliable performance in extreme conditions.
Its robust design includes various end connection options, such as screwed, welded, and flanged, offering flexibility for diverse industrial applications. The valve operates manually, providing precise control over fluid flow, whether in water, steam, oil, or weak acid solutions.
🔧 Technical Specifications
-
Materials: Carbon steel, stainless steel, brass, Monel 400, 2205 duplex steel
-
Size Range: DN3-DN50
-
Pressure Rating: 6000 PSI
-
Temperature Range: -29°C to 425°C
-
End Connections: Screwed, welded, flanged
-
Operation: Manual operation
-
Suitable Fluids: Water, steam, oil, weak acid solutions
-
Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
