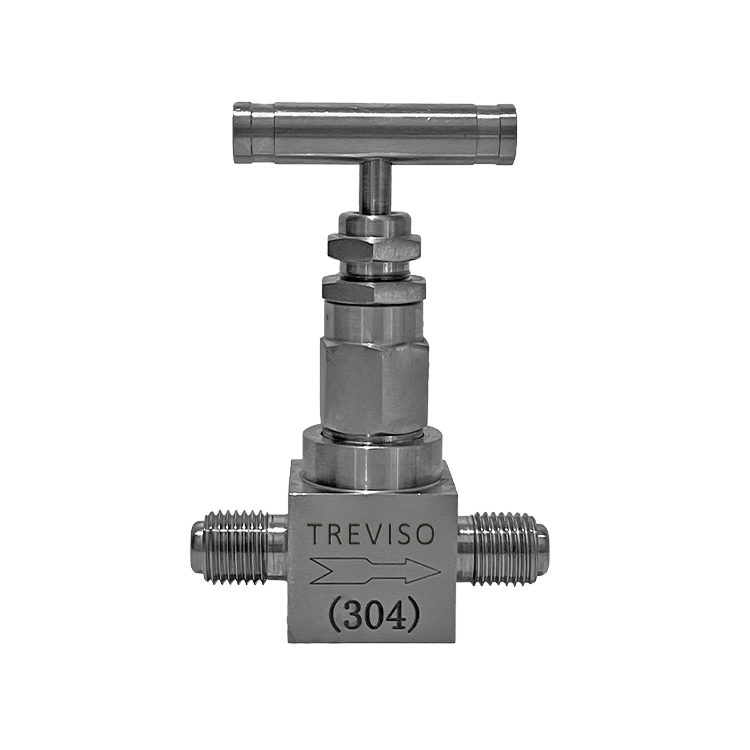

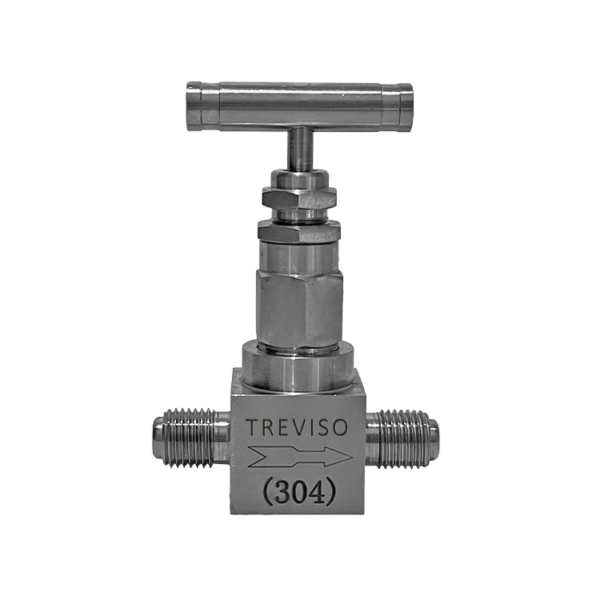

The High-Pressure Straight-Through Needle Valve is designed for controlling flow and regulating pressure in high-pressure systems. Perfect for applications that require precise adjustments of flow rates and pressures, this valve ensures secure and reliable operation. With its straight-through design, it provides efficient flow control and is ideal for industries where precision and durability are essential.
Made from high-quality 304 stainless steel, the valve is capable of handling pressures up to PN160 and operating temperatures between -29°C and 425°C, ensuring exceptional performance even in extreme conditions. Its robust design and tight sealing capabilities make it the perfect choice for controlling fluids in critical systems.
🔧 Technical Specifications
-
Materials: 304 stainless steel
-
Size Range: DN3
-
Pressure Rating: PN160
-
Temperature Range: -29°C to 425°C
-
End Connections: Screwed, with hard-sealed ball face
-
Operation: Manual operation
-
Suitable Fluids: Suitable for weak acid and alkaline fluids
-
Design and Manufacturing Standards: API, ASME, ASTM, ANSI, ISO, GB
