Precision Sampling with Superior Sealing Performance

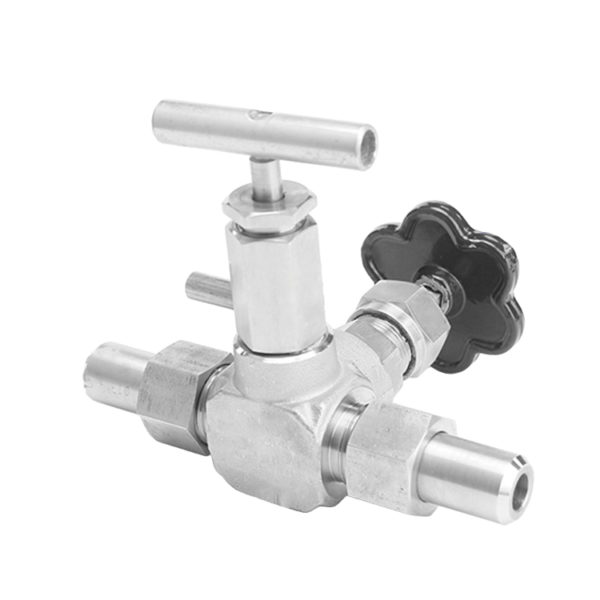

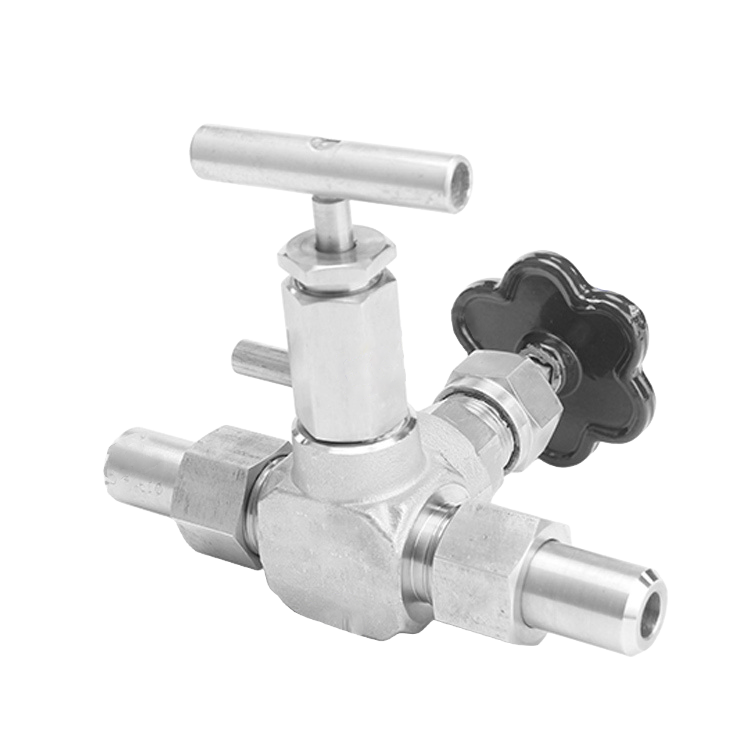

The High Sealing Sampling Valve is engineered for reliable and safe extraction of medium samples from pipelines and process equipment. Designed for frequent chemical analysis, this valve ensures secure sampling without leakage, even under high-pressure and high-temperature conditions. Its robust sealing capabilities make it an ideal choice for industries requiring precision and cleanliness.
Technical Specifications
- Valve Body Material: Carbon steel, stainless steel, copper, alloy 400 (Monel), 2205 duplex steel
- Size Range: DN15
- Pressure Rating: 6000 PSI
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Threaded, welding
- Applicable Media: Water, gas, oil, etc.
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
Product Features
- High sealing performance to prevent leaks during sampling
- Durable materials suited for aggressive and high-temperature environments
- Compact design for easy integration in process lines
- Ensures clean and accurate sample extraction
- Built to meet international industry standards
Applications
Ideal for chemical processing, oil & gas, pharmaceuticals, and electronics, the High Sealing Sampling Valve delivers accurate sample retrieval while maintaining process safety and efficiency.
