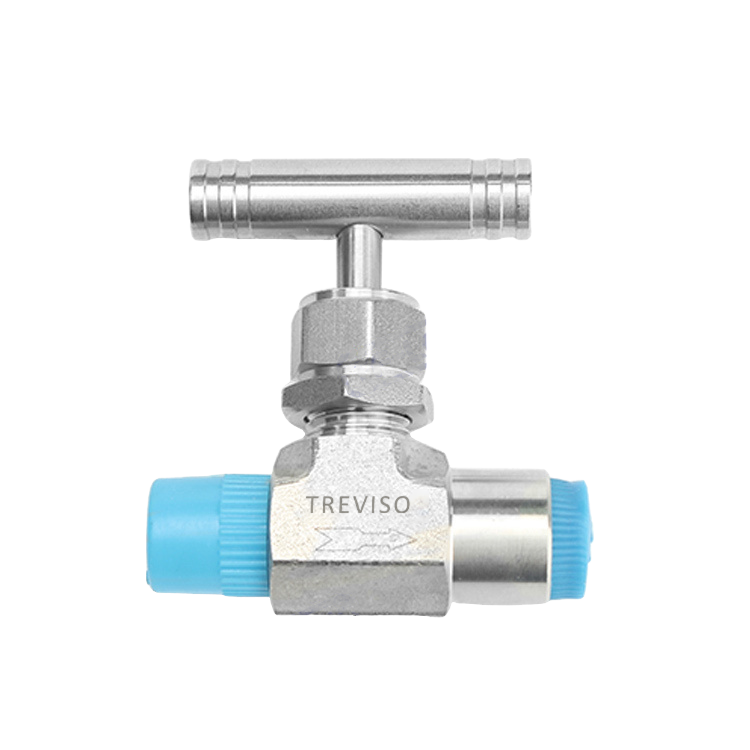

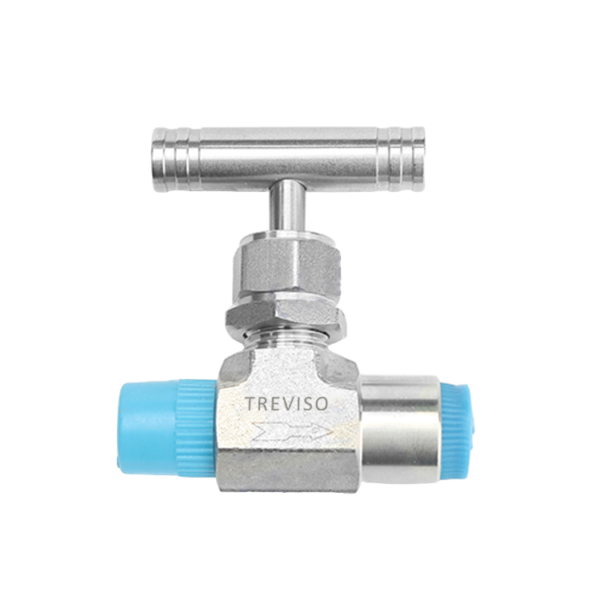

The Integral Bonnet Needle Valve is a precision-engineered solution designed for reliable and accurate flow control in high-pressure applications. With a rugged integral bonnet construction, this valve provides excellent sealing performance, structural integrity, and long service life even in harsh industrial environments.
Manufactured from high-quality materials including carbon steel, stainless steel, copper, alloy 400 (Monel), and 2205 duplex steel, it offers superior resistance to corrosion and chemical attack. Suitable for a wide range of fluid media such as water, gas, and oil, this valve is ideal for critical operations in petroleum, chemical, pharmaceutical, cryogenic, and storage tank systems.
Technical Specifications:
- Valve Body Material: Carbon steel, stainless steel, copper, alloy 400 (Monel), 2205 duplex stainless steel
- Size Range: DN5–DN50
- Pressure Rating: ≤ 6000 psig (414 bar)
- Working Temperature: -65°F (-54°C) to 450°F (232°C)
- Connection Types: Ferrule, thread, welding
- Operation: Manual
- Applicable Media: Water, gas, oil
- Design & Manufacturing Standards: ASME B16.34, ASME B16.11, ASME B1.20.1
Applicable Industries:
Petroleum, chemical processing, pharmaceuticals, storage tanks, cryogenic equipment, and more.
