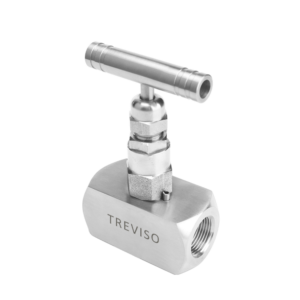

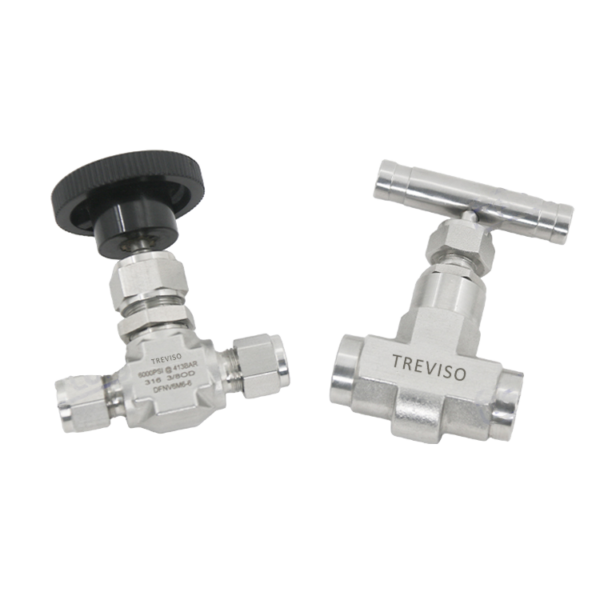

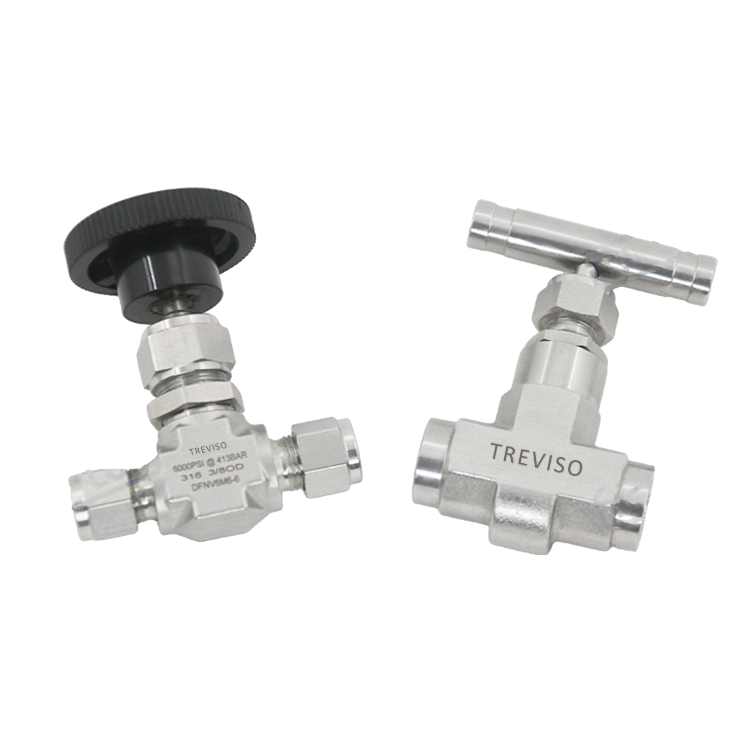

Enhance your system’s performance with our Integrated Needle Valve, designed for accurate flow control in high-pressure environments. Built using premium materials like carbon steel, stainless steel, copper, alloy 400 (Monel), and 2205 duplex, this valve guarantees durability, corrosion resistance, and long-lasting service in critical operations.
Ideal for a variety of industries—including petroleum, chemical, pharmaceutical, electronics, and hydraulic systems—this valve supports manual operation with a robust and compact design. Available in sizes from DN15 to DN25, it’s rated up to 6000 psig (413 bar) and operates across a wide temperature range of -65°F (-54°C) to 1200°F (648°C).
🔧 Key Features:
- Material Options: Carbon steel, stainless steel, copper, Monel (alloy 400), and 2205 duplex
- Size Range: DN15–DN25
- Pressure Rating: Up to 6000 psig (413 bar)
- Temperature Range: -65°F (-54°C) to 1200°F (648°C)
- Connection Types: Threaded, welded, ferrule
- Operation Mode: Manual
- Applicable Media: Water, gas, oil, and weak corrosive fluids
- Standards: ASME B16.34, ASME B16.11, ASME B16.5, and more
🌐 Industries Served:
- Petroleum & Petrochemical
- Chemical Processing
- Pharmaceuticals
- Electronics Manufacturing
- Hydraulic Systems
