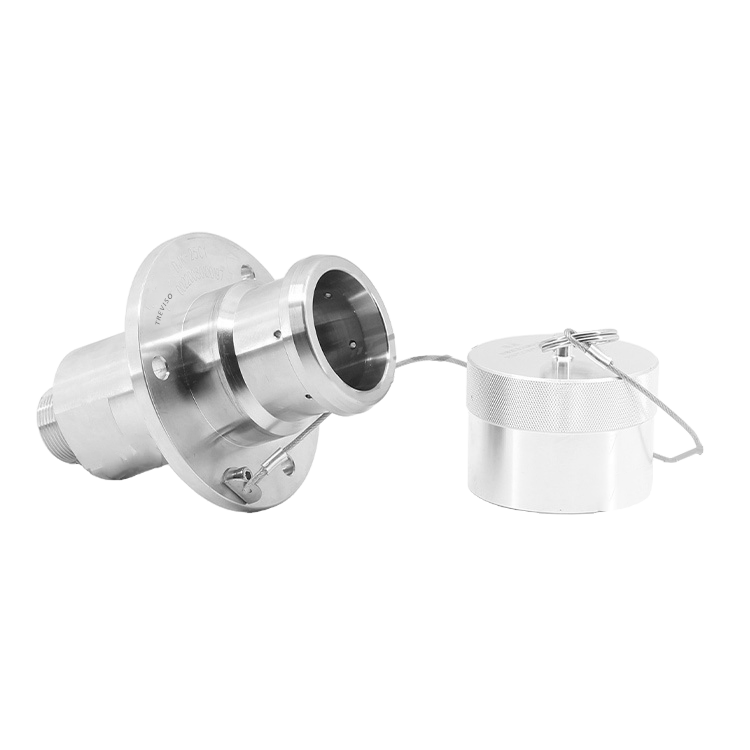

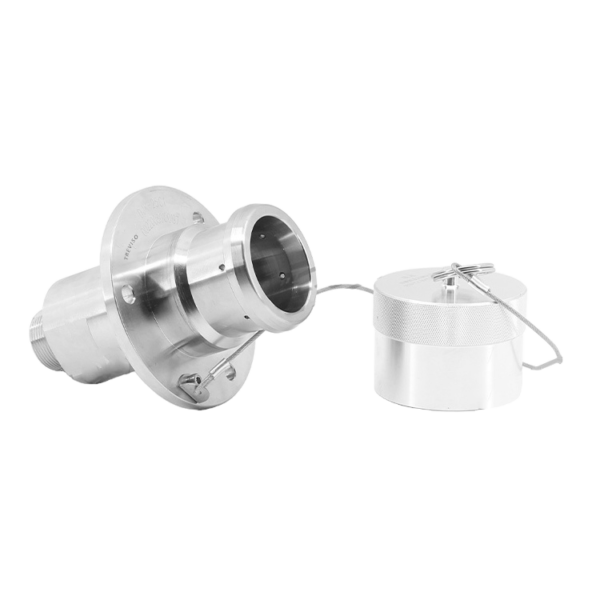

The LNG Low Temperature Gas Filling Port is a critical component designed for the efficient transfer of LNG (Liquefied Natural Gas) and LN2 (Liquid Nitrogen) in cryogenic systems. Constructed from high-quality stainless steel and copper, this gas filling port ensures reliable operation in extreme temperature conditions ranging from -196°C to +85°C, with a pressure rating of 4.0 MPa.
Featuring manual operation and a threaded end connection, it is designed for seamless integration into LNG and LN2 pipelines. This filling port is perfect for ultra-low temperature industries where safety and performance are critical. Built to comply with international standards, including API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, and GB, it guarantees optimal performance in cryogenic systems.
🔧 Technical Specifications:
-
Materials: Stainless steel, copper
-
Size Range: Standard size
-
Pressure Rating: 4.0 MPa
-
Temperature Range: -196°C to +85°C
-
End Connections: Threaded
-
Media: LNG, LN2
-
Operation Mode: Manual
-
Applicable Industries: Cryogenic, LNG, LN2
-
Design and Manufacturing Standards: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
