Accurate Flow Regulation | High Pressure Tolerance | Compact Design

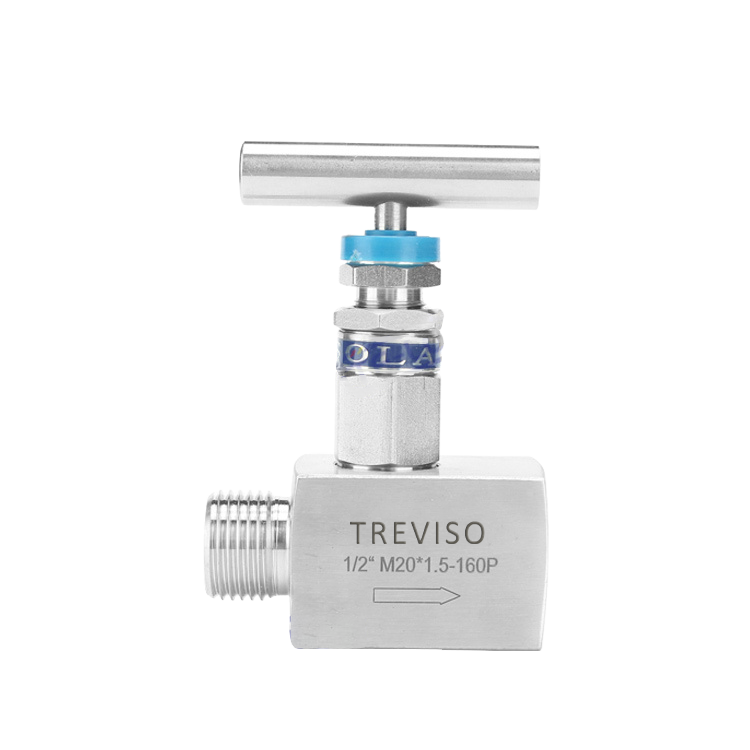

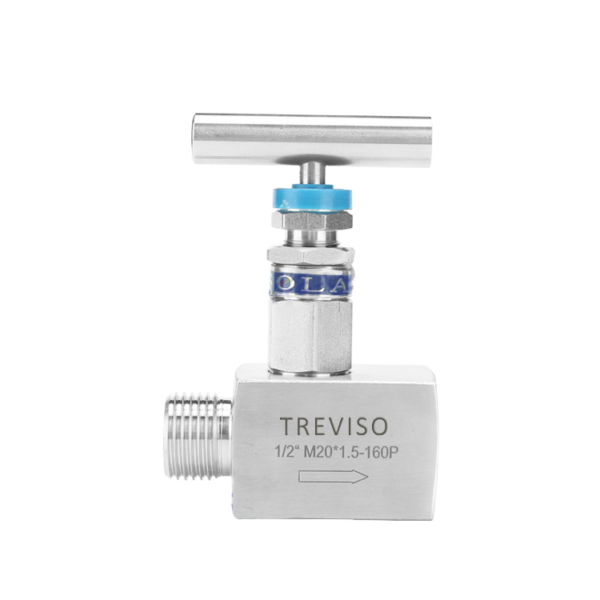

The Needle Valve is engineered for precise control and shutoff of flow in fluid systems. With its needle-shaped plunger that moves in the direction of fluid flow, it allows for smooth modulation of the cross-sectional flow area—making it ideal for throttling applications and fine-tuning system pressure.
Crafted from carbon steel, stainless steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve offers excellent durability, corrosion resistance, and performance across a wide range of industrial environments. With support for pressure ratings up to 6000 psig (414 bar) and a temperature range of -54°C to 316°C (-65°F to 1200°F), it is well-suited for high-demand applications.
Technical Specifications:
- Materials: Carbon Steel, Stainless Steel, Copper, Alloy 400 (Monel), 2205 Duplex Steel
- Size Range:
- Imperial: 1/8″ – 1″
- Metric: M6 – M28
- Pressure Rating: ≤6000 psig (414 bar)
- Temperature Range: -54°C to 316°C (-65°F to 1200°F)
- End Connections: Threaded, Welded, Ferrule
- Operation: Manual
Applications:
Ideal for precision control in systems across:
- Petroleum and Petrochemical
- Chemical Processing
- Pharmaceutical Production
- Electronics and Instrumentation
- Hydraulic Equipment
Standards Compliance:
Manufactured to meet industry standards:
ASME B16.34, ASME B16.11, ASME B16.5, and more.
