Enhanced Sealing Performance | Reduced Wear | Precision Flow Control

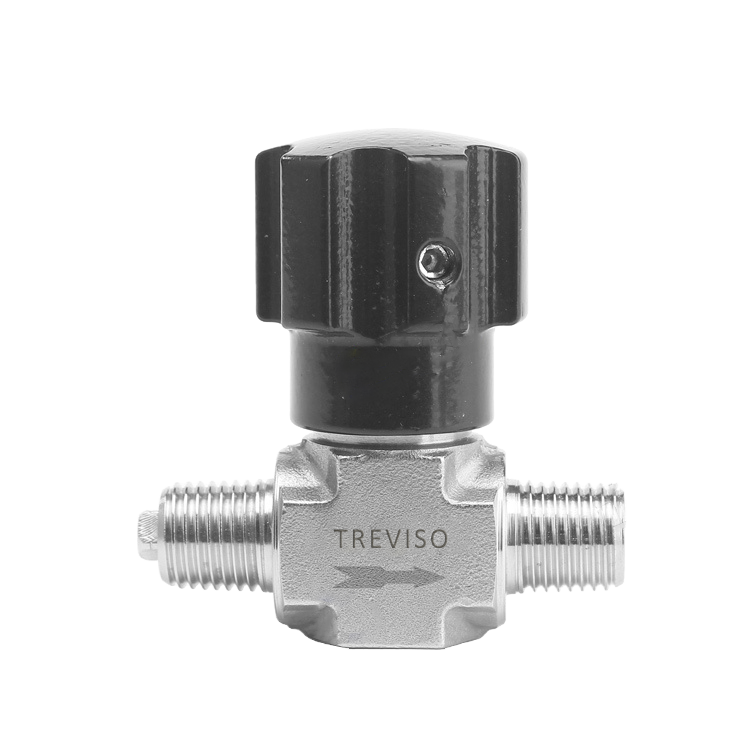

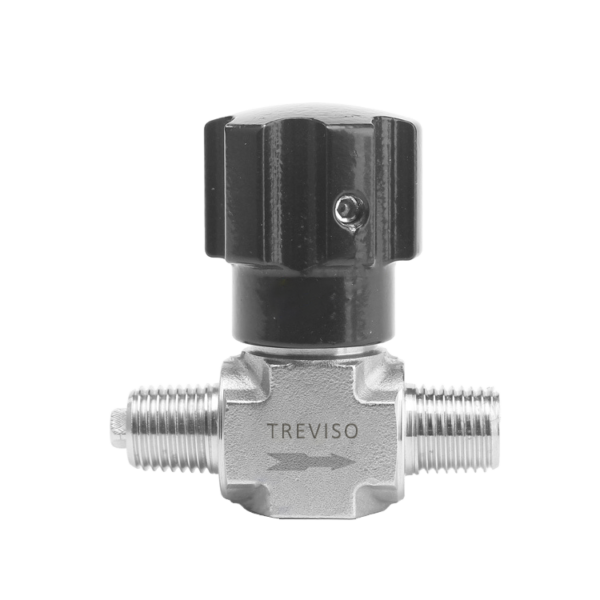

The Non-Rotating Stem Needle Valve is specially designed for high-precision flow regulation in high-pressure systems where durability and leak prevention are critical. Its non-rotating stem structure prevents stem and seat wear by allowing the stem tip to move vertically without rotating, ensuring a longer service life and improved sealing performance.
Constructed from corrosion-resistant materials such as stainless steel, brass, and Alloy 400 (Monel), this valve is ideal for controlling water, gas, or oil in various industrial applications. With a size range of DN5–DN25 and a pressure rating up to 3000 psig (206 bar), it delivers reliable manual control in demanding conditions.
Technical Specifications:
- Body Materials: Stainless Steel, Brass, Alloy 400 (Monel)
- Size Range: DN5 – DN25
- Pressure Rating: ≤3000 psig (206 bar)
- Working Temperature: -20°F (-28°C) to 450°F (232°C)
- End Connections: Threaded, Welded, Ferrule
- Operation: Manual
- Standards Compliance: ASME B16.34, ASME B16.11, ASME B1.20.1
Applications:
Engineered for a wide range of industries, including:
- Petrochemical Plants
- Chemical Processing
- Coal Gas and Natural Gas Systems
- LPG Distribution
- HVAC Industry
