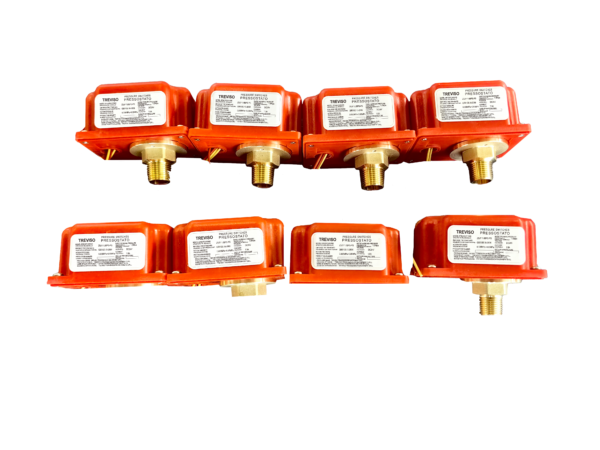

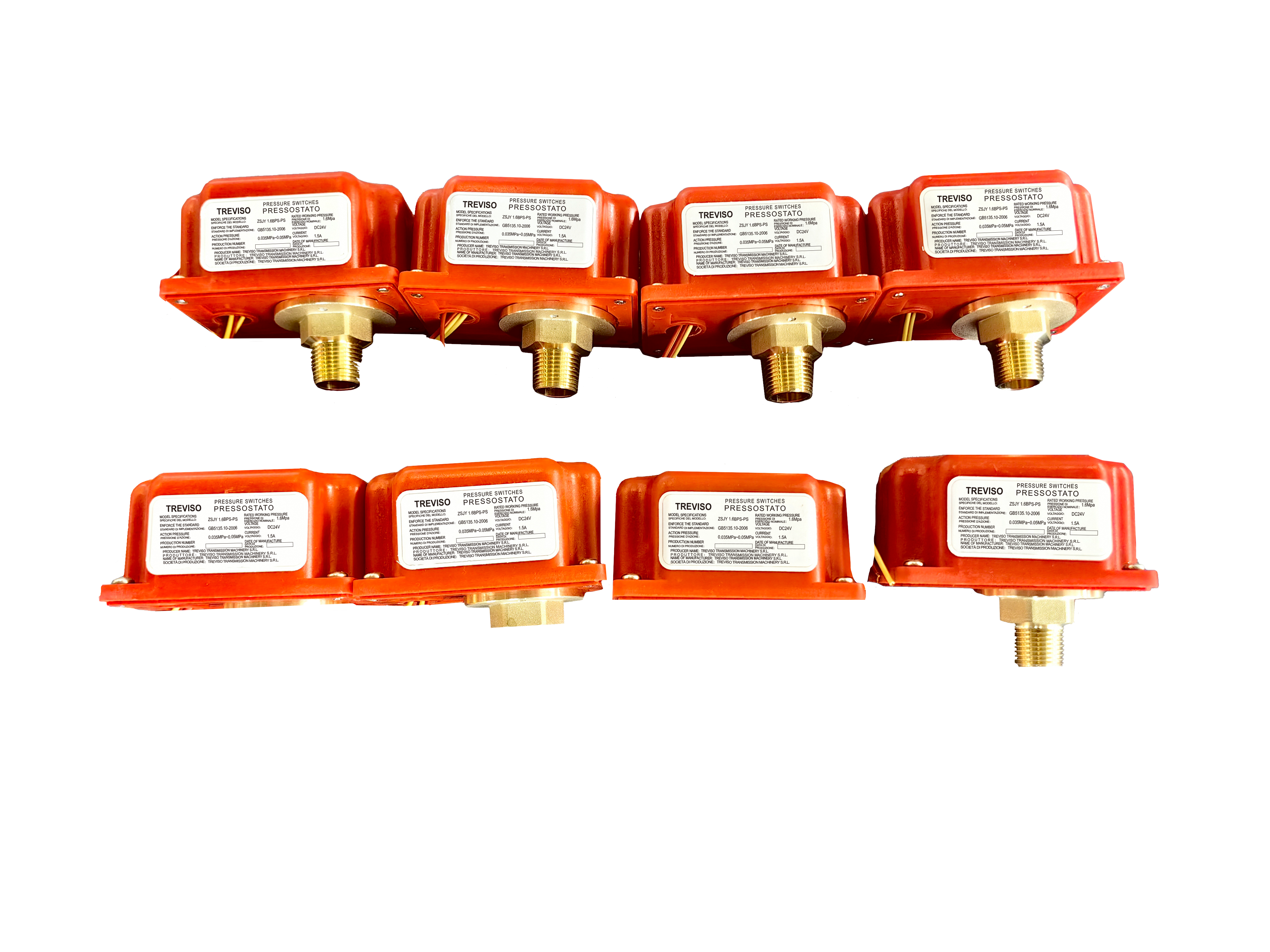

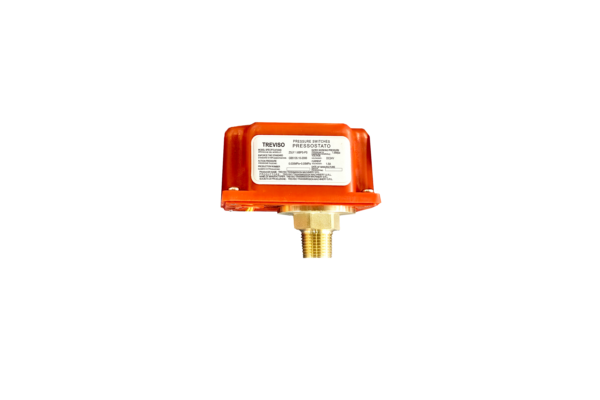

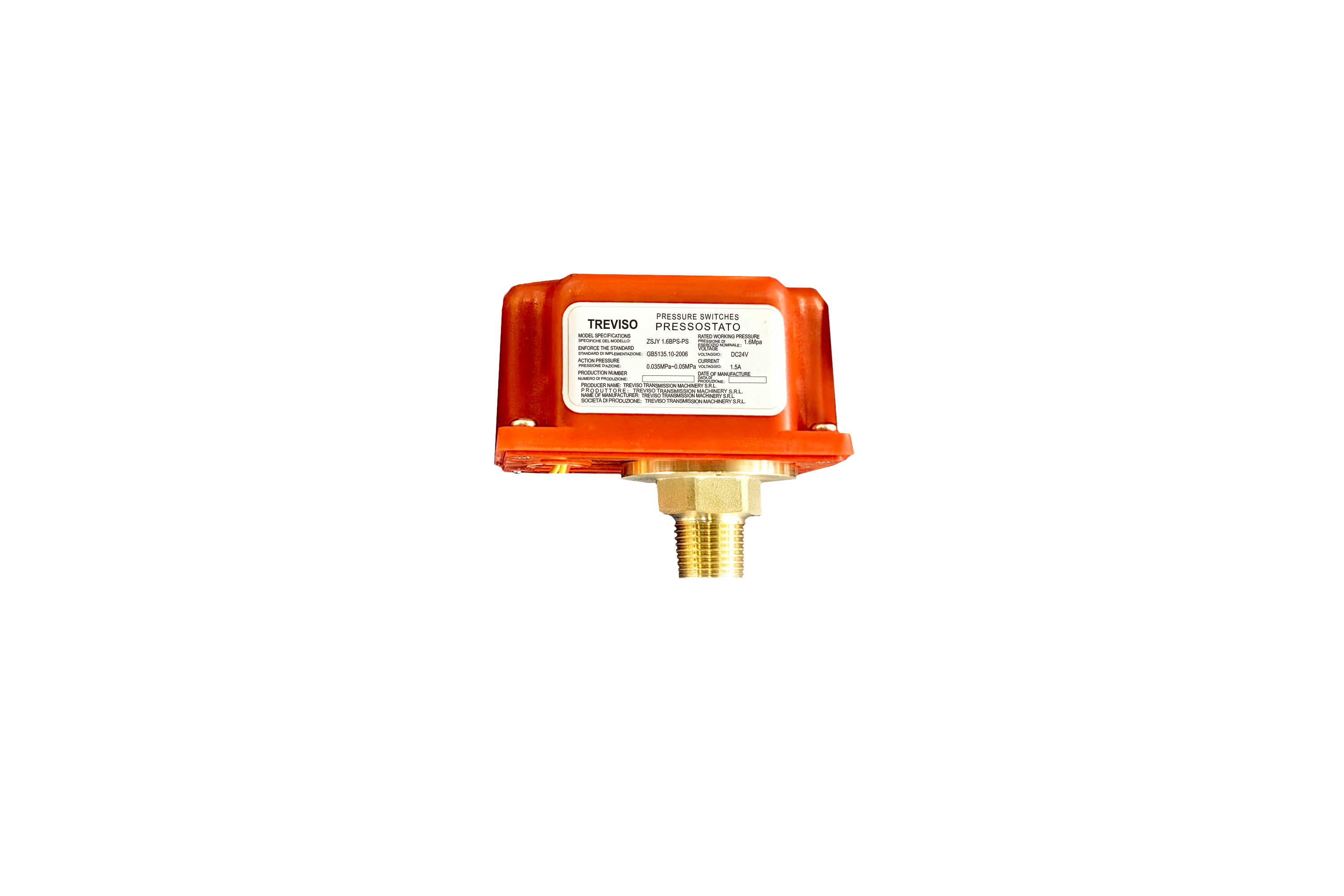

ZSJY 1.6BPS-PS16 pressure switch consists of a base, a bracket, a micro switch, etc. The base is made of brass, and the interior is made of stainless steel springs and rubber parts with good elasticity. The contacts are in the normally open state and are often used in conjunction with wet alarm valves, rain alarm valves, and pre-action device systems to monitor the pressure in the alarm system pipeline and transmit the alarm valve action signal.
ZSJY1.6BPS-PS
Signal output element: micro switch 5A125/250VAC
Number of output contact groups: two groups of normally open and normally closed contacts
Actuation pressure: 0.035MPa~0.05MPa
Electrical parameters: DC24V1.5A
Rated working pressure: 1.6MPa
Applicable medium: water, air
Connecting pipe thread: R1/2°
Ambient operating temperature: 4°C~70°C
Material: H62, 20Cr13, H59, ABS, nylon
Implementation standard: GB5135.10-2006
