Precision Control | High Pressure Handling | Universal Compatibility

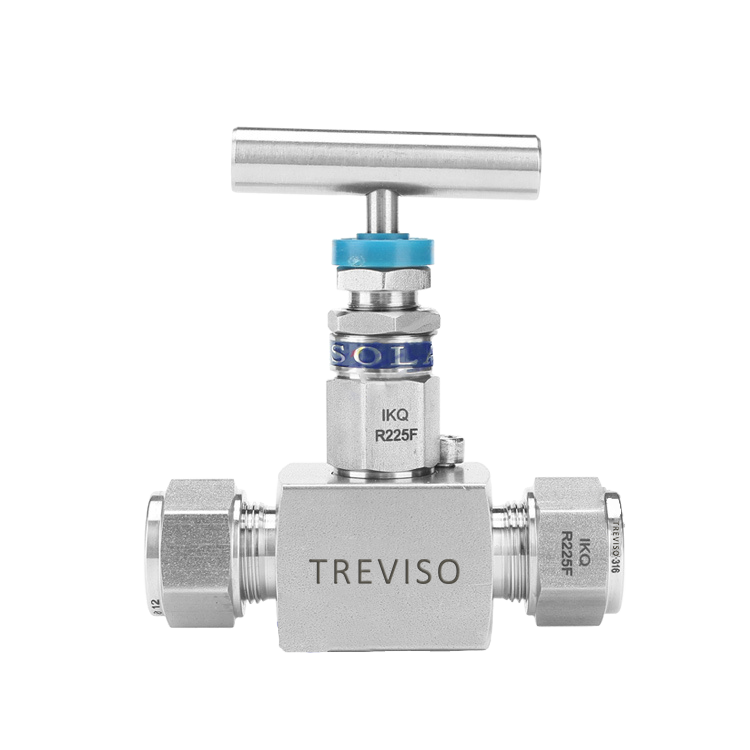

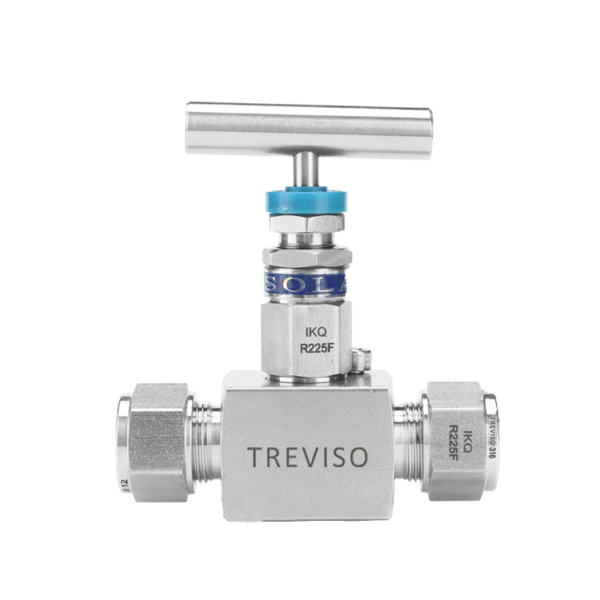

The Stainless Steel Universal Needle Valve DN5-Dn50 is expertly designed for accurate flow regulation and leak-proof shutoff in a wide range of high-pressure applications. With exceptional sealing capabilities and a robust build, this valve is ideal for controlling liquid, gas, oil, and weak corrosive media at flow-critical points in industrial systems.
Manufactured using high-grade materials such as stainless steel, carbon steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve ensures outstanding durability, corrosion resistance, and performance under extreme conditions. Its universal design and multiple end connection options—threaded, welded, or ferrule—make it a versatile solution for fluid systems in demanding environments.
Technical Specifications:
- Materials: Stainless Steel, Carbon Steel, Copper, Alloy 400 (Monel), 2205 Duplex Steel
- Size Range: DN5 – DN50
- Pressure Rating: ≤10,000 psig (689 bar)
- Operating Temperature: -65°F (-54°C) to 1200°F (648°C)
- Connection Types: Threaded, Welded, Ferrule
- Operation Method: Manual
- Compliance & Standards: ASME B16.34, ASME B16.11, ASME B16.5,
Applications:
Ideal for use in industries including:
- Petroleum and Oil & Gas
- Chemical Processing Plants
- Pharmaceutical Manufacturing
- Electronic and Instrumentation Systems
- Hydraulic Equipment and Systems
