High-Pressure Precision Control with Exceptional Sealing Performance

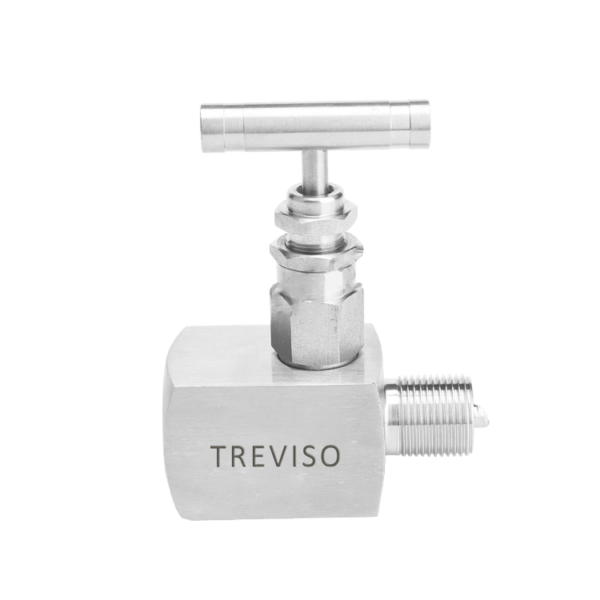

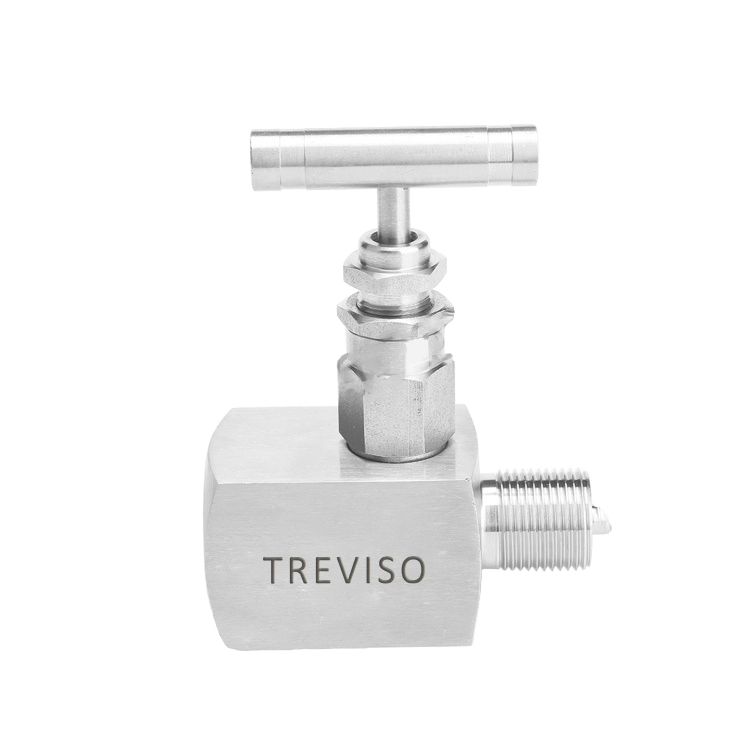

The Stainless Steel Universal Needle Valve DN5–DN50 is expertly designed for precise control of fluid and gas flow in high-pressure systems. With excellent sealing capability and a wide material compatibility range, this valve is ideal for applications that demand accuracy and durability in challenging environments.
Technical Specifications
- Product Materials: Carbon steel, stainless steel, copper, alloy 400 (Monel), 2205 duplex steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10,000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Threaded, welding, ferrule
- Applicable Media: Water, gas, oil, weak corrosive media
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
Applications
Widely used in chemical processing, oil & gas, pharmaceuticals, hydraulics, and instrumentation systems, the Stainless Steel Universal Needle Valve is a trusted solution for professionals requiring reliable flow control in demanding environments.
