High-Precision Flow Control for Demanding Industrial Applications

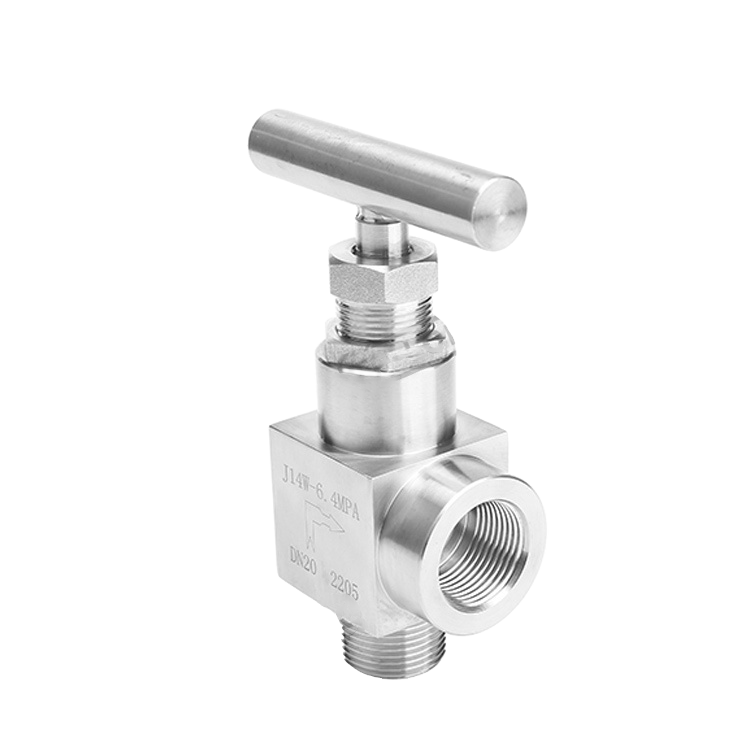

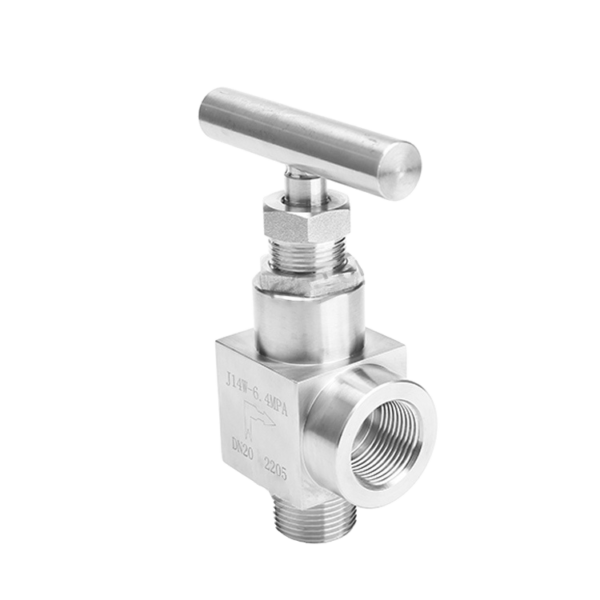

The Threaded Bonnet Needle Valve is a robust and reliable solution designed for precise regulation of fluid flow in high-pressure, high-temperature environments. Crafted from durable materials such as carbon steel, stainless steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve offers superior resistance to corrosion and extreme conditions.
With a size range from DN5 to DN50 and a pressure rating of up to 10000 psig (689 bar), it is ideal for controlling the flow of water, gas, oil, and weakly corrosive media. The valve supports threaded, welded, and ferrule terminal connections, allowing for easy integration into a variety of pipeline systems. Operating manually, it provides fine control, making it an essential component in critical industrial processes.
Technical Specifications
- Valve Body Material: Carbon steel, stainless steel, copper, Alloy 400 (Monel), 2205 duplex steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Thread, welding, ferrule
- Applicable Media: Water, gas, oil, weak corrosive media
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
Product Highlights
- Threaded Bonnet Design ensures secure sealing and reliable performance
- Built for High Pressure & Temperature operations in industrial systems
- Corrosion-Resistant Materials extend valve life in aggressive environments
- Versatile End Connections for simplified installation and maintenance
- Compliant with Global Standards (ASME) for quality and safety assurance
Applications
Ideal for use in oil and gas, chemical manufacturing, pharmaceuticals, electronics, and hydraulic systems, the Threaded Bonnet Needle Valve delivers consistent, accurate control for sensitive flow management tasks.
