Versatile Flow Direction Control for Industrial Applications

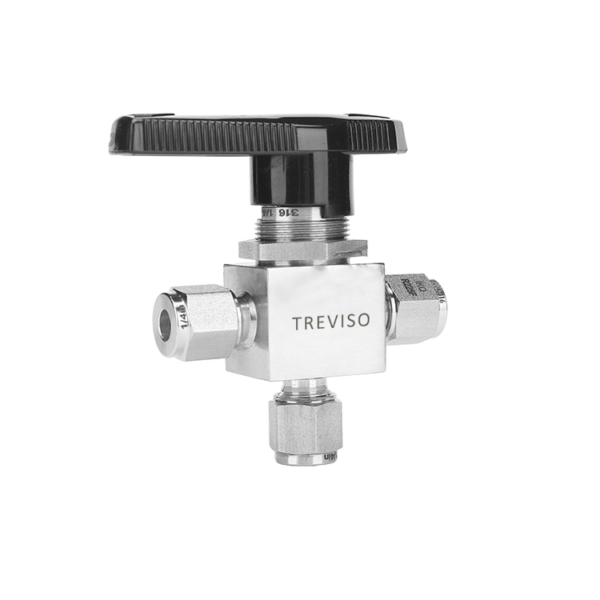

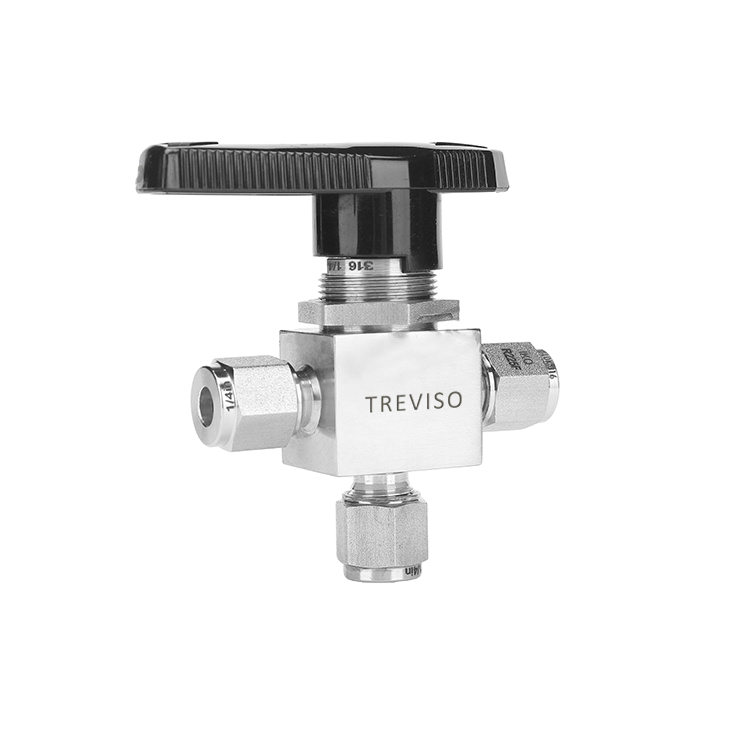

The Three-Way Ball Valve is designed to efficiently manage the distribution, diversion, or shut-off of flow in pipeline systems. With a simple 90-degree rotation, it offers tight sealing and minimal torque operation, making it a reliable choice for controlling fluid direction in complex piping networks.
Constructed from high-quality materials including carbon steel, stainless steel, copper, and alloy steel, this valve is engineered to handle pressures up to 60,000 PSI and temperatures up to 540°C. The three-way design enables flexible flow configurations, ideal for process systems that require multiple flow paths.
Technical Specifications
- Product Materials: Carbon steel, stainless steel, copper, alloy steel
- Size Range: ≥1/16 OF
- Pressure Rating: ≤60,000 PSI
- Working Temperature: ≤540°C
- Terminal Connection: Ferrule, thread, flange, welding
- Applicable Media: Water, gas, oil
- Operation Method: Manual, pneumatic, electric
- Applicable Industries: Water treatment, power generation, petrochemical, municipal systems
Key Features
- Three-way flow design for splitting or combining media flow
- High pressure and temperature resistance for critical operations
- Multiple operation modes: manual, pneumatic, and electric for system adaptability
- Reliable sealing with low operating torque
- Versatile connection types for various installation environments
Applications
Widely used in power plants, petrochemical industries, water treatment systems, and municipal infrastructure, the Three-Way Ball Valve provides durable and efficient performance for systems requiring multi-directional flow control.
