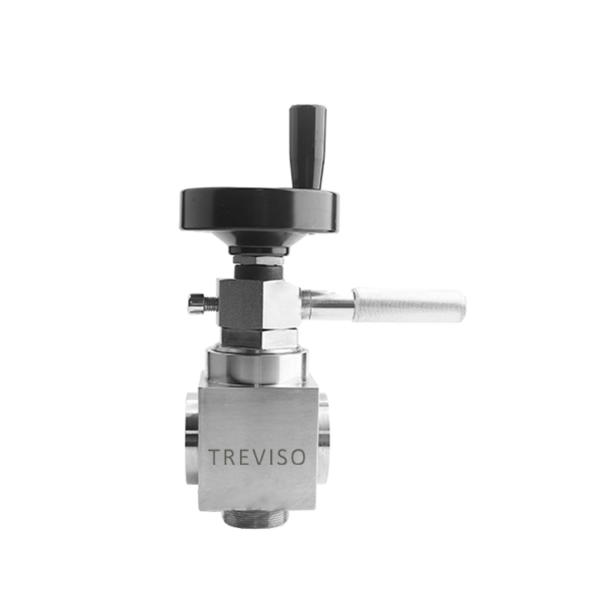

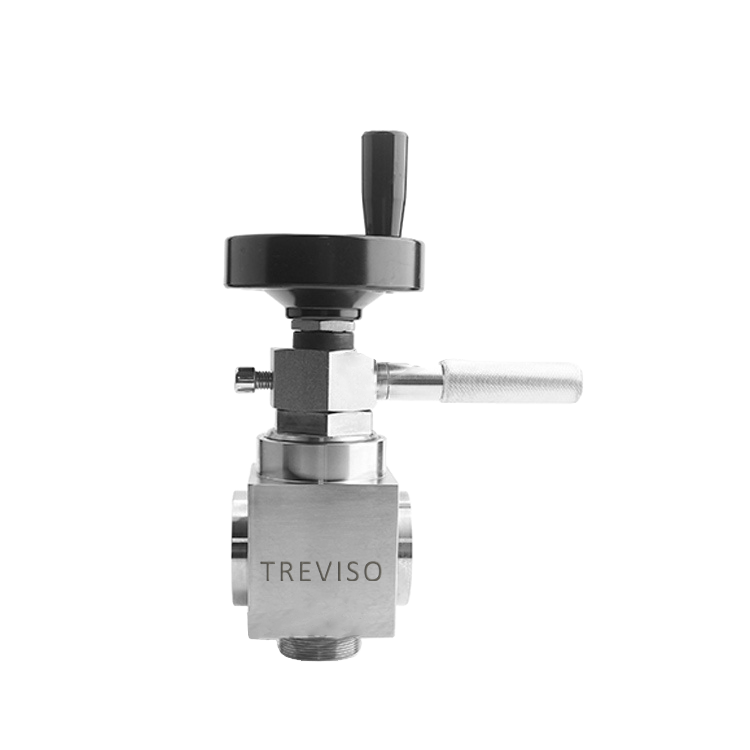

Three-Way Plug Valve

The Three-Way Plug Valve is a manually operated rotary valve designed for quick and reliable flow direction control. Featuring a plunger-shaped closure element, this valve operates with a simple 90-degree rotation, effectively connecting or isolating flow paths within pipelines. Ideal for multi-port flow systems, it provides robust performance and leak-tight sealing in a wide range of industrial applications.

Technical Specifications:

• Valve Body Material: Carbon Steel, Stainless Steel, Copper, Alloy 400 (Monel), 2205 Duplex Steel

• Size Range: DN3–DN50

• Pressure Rating: ≤3000 psig (207 bar)

• Working Temperature: -10°F (-23°C) to 400°F (204°C)

• Connection Types: Threading, Welding, and others

• Applicable Media: Water, Gas, Oil

• Operation Method: Manual Operation

• Applicable Industries: Petrochemical, Chemical, Coal Gas, Natural Gas, LPG, HVAC

• Design & Manufacturing Standards: ASME B16.34, ASME B16.11, ASME B16.25, etc.

Key Features:

• Quick 90-degree rotary actuation for fast flow direction switching

• Durable multi-material construction for various industrial environments

• Suitable for aggressive and high-pressure media

• Reliable sealing and reduced leakage risk

• Complies with leading global standards for design and safety
