Precision Fluid Control for High-Pressure and High-Temperature Systems

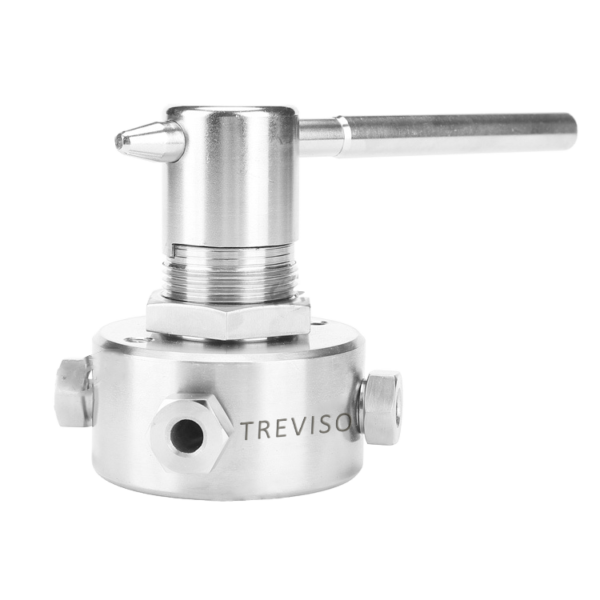

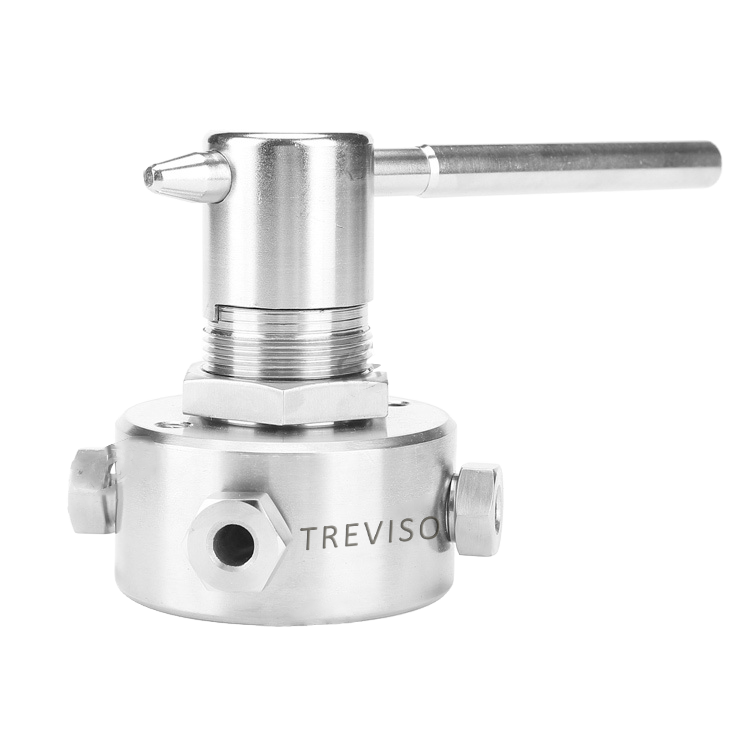

The Top-Mounted Instrument Ball Valve 2 is designed to provide accurate fluid control and seamless flow direction in industrial pipelines. Engineered for maximum efficiency, this valve operates with a simple 90-degree rotation, ensuring a secure, tight seal with minimal torque, even under high-pressure and high-temperature conditions.
Technical Specifications:
-
Materials: Carbon steel, stainless steel, brass, Monel 400, 2205 duplex steel
-
Size Range: ≥1/16 OD
-
Pressure Rating: ≤60,000 PSI
-
Temperature Range: ≤540°C
-
End Connections: Card sleeve, swage, flange, weld fittings
-
Operation: Manual, pneumatic, electric operation options available
-
Suitable Fluids: Water, gas, oil
-
Design Standards: Custom-designed to meet industrial requirements
🌍 Applications:
-
Water and Wastewater Treatment Systems
-
Oil and Gas Industry
-
Power Generation and Electrical Systems
-
Municipal Water Supply Systems
