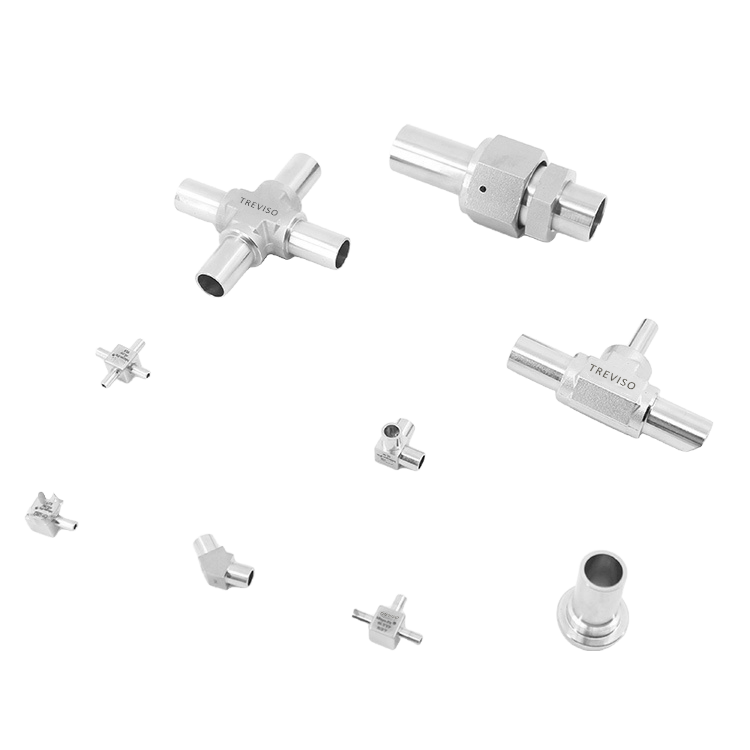

Our Tube Butt Weld Fittings are specially designed for high-integrity pipeline connections in ultra-pure gas systems. Engineered from premium materials like carbon steel, stainless steel, copper, and alloy steel, these fittings ensure leak-proof, durable, and reliable welded connections even under extreme conditions.
With a size range from 1/4″ to 1″, these fittings support pressures up to 5100 psig (351 bar) and are capable of withstanding ultra-high operating temperatures up to 1000°F (538°C). Designed for welding end connections, they are ideal for industries requiring ultra-clean environments such as semiconductor manufacturing and microelectronics.
Technical Specifications
-
Body Material: Carbon steel, stainless steel, copper, alloy steel
-
Size Range: 1/4″ to 1″
-
Pressure Rating: 5100 psig (351 bar)
-
Operating Temperature: Up to 1000°F (538°C)
-
End Connection: Welded connection
-
Applicable Medium: Ultra-pure gases
-
Operation Method: Welding installation
-
Applicable Industries: Ultra-pure gas distribution, microelectronics manufacturing
-
Design and Manufacturing Standards: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
