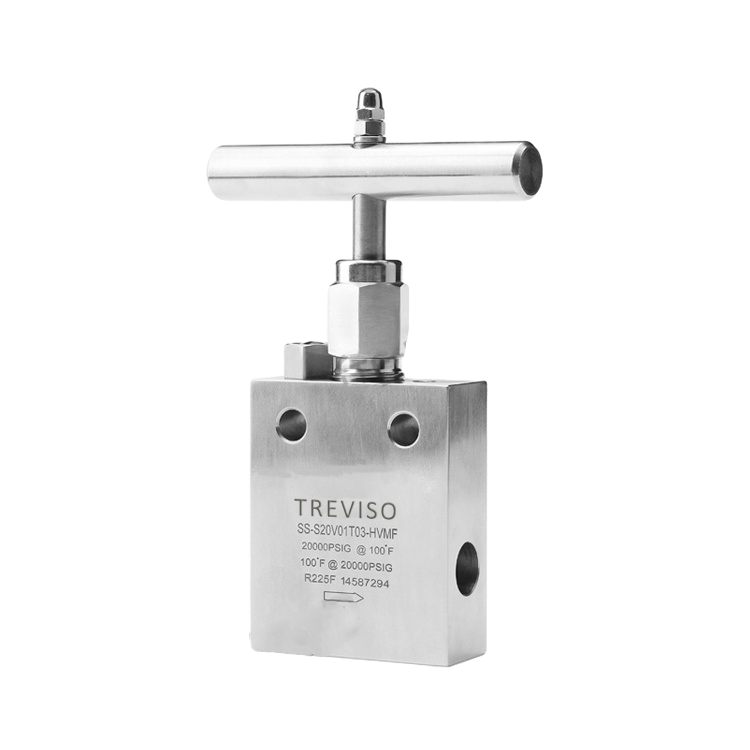

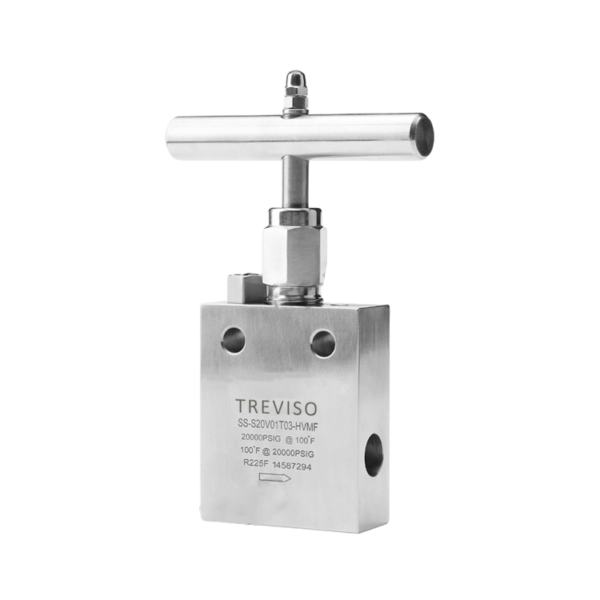

The Ultra-High Pressure Needle Valve 5 is designed to provide precise flow control in high-pressure systems. It is ideal for industries such as oil and gas, chemical processing, and medical equipment, where high reliability and exceptional sealing are essential. Engineered to withstand pressures up to 30,000 PSIG (2068 bar) and temperatures ranging from -28°C to 648°C, this valve ensures optimal performance in the most demanding environments.
Made from high-quality materials such as carbon steel, stainless steel, and alloy steel, the valve features a variety of end connection types, including screwed, welded, and flanged connections, ensuring versatility for various industrial applications.
🔧 Technical Specifications
-
Materials: Carbon steel, stainless steel, alloy steel, Monel 400, 2205 duplex steel
-
Size Range: DN5-DN25
-
Maximum Inlet Pressure: 30,000 PSIG (2068 bar)
-
Temperature Range: -20°F (-28°C) to 1200°F (648°C)
-
End Connections: Screwed, welded, flanged, etc.
-
Packing Options: Suitable for water, gas, oil
-
Operation: Manual operation
