Precision Flow Control Solution for High-Pressure Industrial Systems

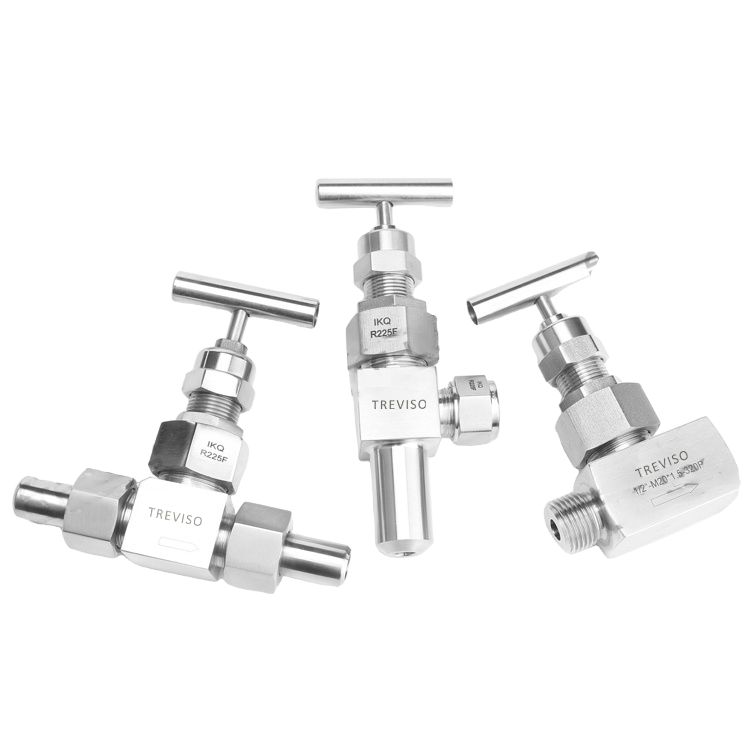

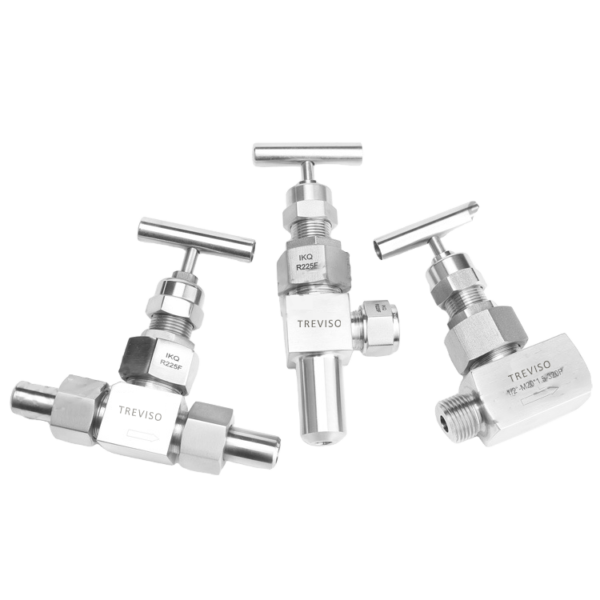

The Union Bonnet Needle Valve 2 is engineered for highly accurate fluid control in challenging environments. Constructed from top-grade materials like carbon steel, stainless steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve offers superior strength, corrosion resistance, and durability. It’s built to meet the most demanding applications involving water, oil, gas, and weakly corrosive media.
With a size range of DN5 to DN50 and a pressure capacity of up to 10000 psig (689 bar), this valve performs reliably under high-stress conditions. Its manual operation and versatile connection options (threaded, welded, ferrule) make it easy to install and maintain across various industrial systems. Designed according to ASME B16.34, B16.11, and B16.5 standards, it ensures consistent safety, performance, and compliance.
Technical Specifications
- Valve Body Material: Carbon steel, stainless steel, copper, Alloy 400 (Monel), 2205 duplex steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Thread, welding, ferrule
- Applicable Media: Water, gas, oil, weak corrosive media
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
Product Highlights
- High-Pressure Tolerance: Capable of withstanding extreme operating conditions
- Corrosion-Resistant Materials: Ideal for long-term use in aggressive environments
- Precision Needle Design: Enables fine control of fluid flow
- Flexible Connectivity: Available in thread, welding, and ferrule connections
- Global Standards Compliance: Built to meet rigorous international quality standards
Applications
The Union Bonnet Needle Valve 2 is a preferred choice in oil and gas, chemical manufacturing, pharmaceuticals, electronics, and hydraulic systems, delivering efficient, accurate, and reliable flow control where it matters most.
