Precision Flow Control for High-Pressure Industrial Applications

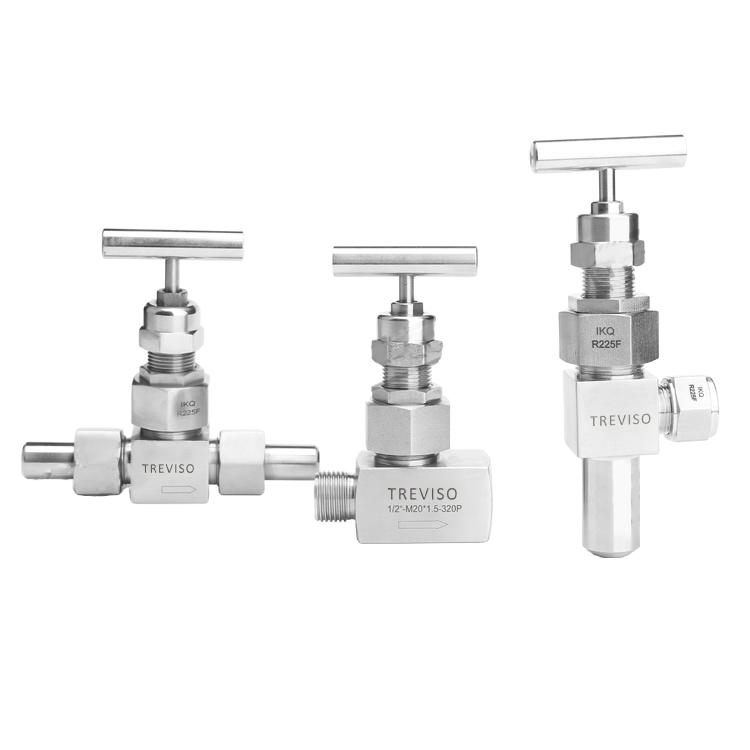

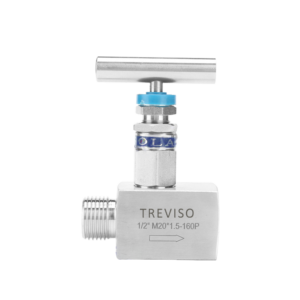

The Union Bonnet Needle Valve is designed for accurate and reliable control of fluid flow in demanding industrial systems. Constructed from high-grade materials like carbon steel, stainless steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve ensures exceptional durability, corrosion resistance, and safety performance under extreme conditions.
With a pressure rating of up to 10000 psig (689 bar) and a broad working temperature range of -65°F (-54°C) to 1200°F (648°C), this valve is ideal for high-pressure and high-temperature operations. Its compact and robust design offers compatibility with various connection types, including threaded, welded, and ferrule ends, making it versatile for installation across numerous systems.
Technical Specifications
- Valve Body Material: Carbon steel, stainless steel, copper, Alloy 400 (Monel), 2205 Duplex Steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Thread, welding, ferrule
- Applicable Media: Water, gas, oil, weak corrosive media, etc.
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design and Manufacturing Standards: ASME B16.34, ASME B16.11, ASME B16.5
Key Benefits
- High-pressure performance for critical industrial environments
- Corrosion-resistant materials suitable for harsh media
- Precision needle design for fine flow control
- Wide temperature range for extreme operational conditions
- Versatile connections for flexible system integration
- Compliance with international standards for safety and quality assurance
Applications
The Union Bonnet Needle Valve is an ideal solution for applications in oil & gas, chemical processing, pharmaceuticals, electronics, and hydraulic systems, where precise and safe flow control is essential.
