High-Performance Flow Control Valve for Precision Industrial Applications

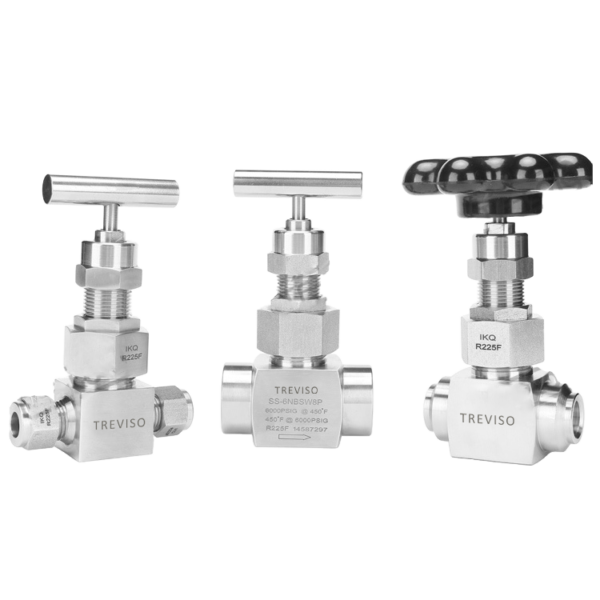

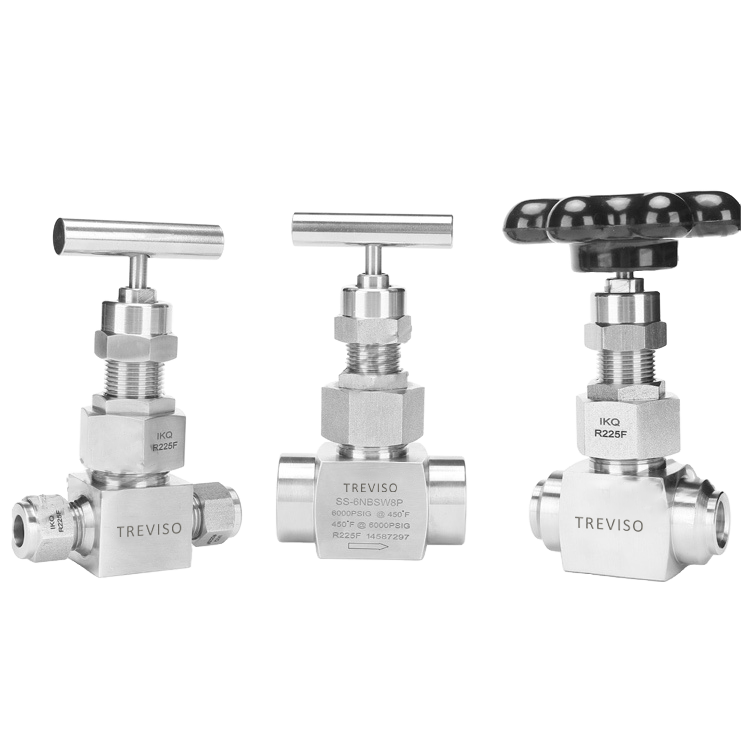

The Union Bonnet Needle Valve is engineered for precision fluid regulation in high-pressure and high-temperature environments. Built with premium-grade materials such as carbon steel, stainless steel, copper, Alloy 400 (Monel), and 2205 duplex steel, this valve ensures exceptional strength, corrosion resistance, and long-lasting performance across various industries.
With a size range of DN5–DN50 and a pressure rating of up to 10000 psig (689 bar), it’s capable of operating under the most demanding conditions. Its wide temperature tolerance from -65°F (-54°C) to 1200°F (648°C) makes it ideal for critical flow applications. The manual operation and flexible thread, welding, or ferrule terminal connections allow for smooth integration and user-friendly operation in complex systems.
Technical Specifications
- Valve Body Material: Carbon steel, stainless steel, copper, Alloy 400 (Monel), 2205 duplex steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Thread, welding, ferrule
- Applicable Media: Water, gas, oil, weak corrosive media, etc.
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design & Manufacturing Standards: ASME B16.34, ASME B16.11, ASME B16.5
Key Features
- Precise Flow Regulation: Engineered for accurate control in sensitive and high-demand systems
- Robust Construction: Withstands extreme pressure and temperature variations
- Corrosion-Resistant Materials: Ideal for use with aggressive or corrosive media
- Flexible Installation: Multiple end connections ensure ease of integration
- Standards Compliant: Manufactured according to recognized ASME standards for safety and reliability
Applications
Perfect for petroleum, chemical processing, pharmaceutical manufacturing, electronics, and hydraulic systems, the Union Bonnet Needle Valve delivers reliable performance and precise control in any fluid handling environment.
