High-Precision Flow Control for Demanding Applications

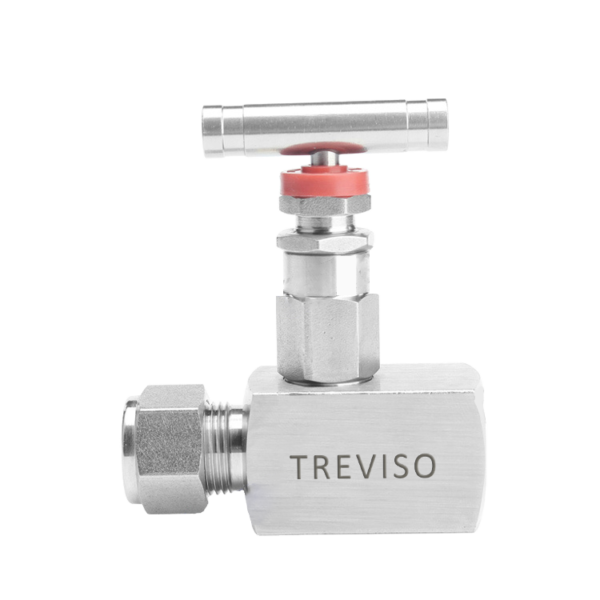

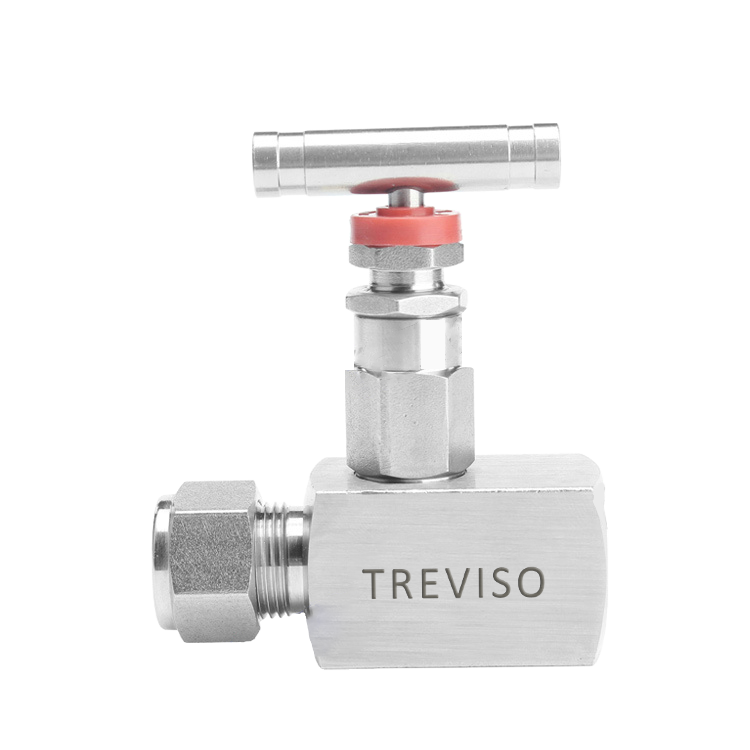

The Universal Needle ValveDN5–DN50 is designed to deliver precise control of fluid or gas flow in high-pressure environments. Known for its excellent sealing performance and resistance to extreme conditions, this valve is an essential component in any system where accuracy and durability are critical.
Technical Specifications
- Product Materials: Carbon steel, stainless steel, copper, alloy 400 (Monel), 2205 duplex steel
- Size Range: DN5–DN50
- Pressure Rating: ≤10,000 psig (689 bar)
- Working Temperature: -65°F (-54°C) to 1200°F (648°C)
- Terminal Connection: Threaded, welded, ferrule
- Applicable Media: Water, gas, oil, weak corrosive fluids
- Operation Method: Manual
- Applicable Industries: Petroleum, chemical, pharmaceutical, electronics, hydraulic
- Design Standards: ASME B16.34, ASME B16.11, ASME B16.5
Applications
Widely used in oil & gas, petrochemical, pharmaceutical, electronics, and hydraulic systems, the Universal Needle Valve ensures reliable operation and extended service life in critical operations.
