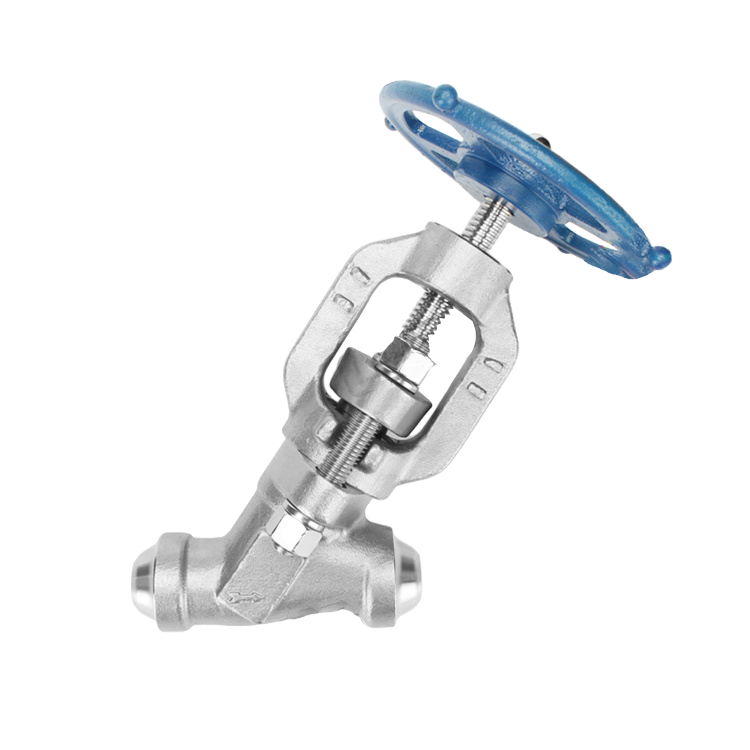

The Y-Type Split Forged Globe Valve is a high-performance valve designed for precise flow control in industrial systems. Constructed from premium F11, F22, and F51 forged steel, this valve offers reliable operation under extreme conditions, with pressure ratings ranging from 150Lb to 2500Lb and temperature capabilities from -46°C to 425°C. It is perfect for use with water, steam, oil, and weak corrosive fluids, making it an ideal choice for industries such as chemical processing, power generation, and water treatment. The valve features manual operation and is available in flanged, threaded, or welded end connections. Compliant with international standards including API, ASME, ASTM, ANSI, ISO, and GB, it ensures top-tier quality and durability.
Key Features:
-
Size Range: DN15–DN50
-
Pressure Rating: 150Lb to 2500Lb
-
Temperature Range: -46°C to 425°C
-
End Connections: Flanged, Threaded, Welded
-
Operation Mode: Manual
-
Applicable Media: Water, Steam, Oil, Weak Corrosives
-
Material Options: F11, F22, F51
-
Standards: API, ASME, ASTM, ANSI, ISO, GB
